Quick Details

• OE Experience:

  No

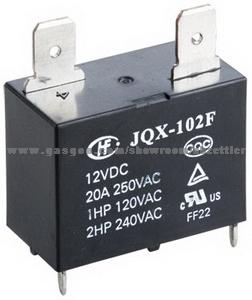

Product Name:Relay JQX-102F

Relay JQX-102F

Application

auto

Product Description:

Dimensionsmm) 30.5x16x23.5mm
Feature: Heavy load up to 5000VA
Ideal for motor switching
Withstand inrush current of 80A
4.5kV dielectric strength
PCB & QC layouts available
RoHS compliant
Contact data
Contact arrangement: 1A,
Contact material: AgSnO2, AgCdO
Max. switching voltage: 250VAC
Max. switching power: 6250VA
Contact rating (Res. Load): Motor1HP 120VAC
2HP 240VAC
Resistive20A 250VAC
Coil data
Nominal voltage VDC: 5--48VDC
Coil power: 0.9W
Characteristics
Initial insulation resistance: 1000M
Dielectric strength (between coil and contacts): 4500VAC
Mechanical life (ops): 2x106
Electrical life (ops): 1x105
