Quick Details

• OE Experience:

  No

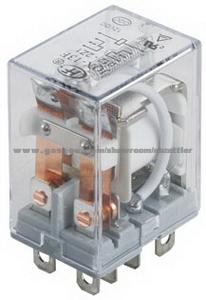

Product Name:Relay JQX-13

Relay JQX-13

Application

auto

Product Description:

Dimensionsmm) 28x21.5x35mm
Feature: Various terminals available
15A switching capability
Sockets available
Conform to the CE low voltage directive
1 & 2 pole configurations
RoHS compliant
Contact data
Contact arrangement: 1C, 2C
Contact material: AgCe, AgCdO
Max. switching voltage: 250VAC/30VDC
Max. switching power: 3750VA/450W
Contact rating (Res. Load): 1C:15A 250VAC/30VDC
2C:10A 250VAC/30VDC
Coil data
Nominal voltage VDC: 6-240VAC/5--110VDC
Coil power: 1.2VA/0.9W
Characteristics
Initial insulation resistance: 500M
Dielectric strength (between coil and contacts): 1500VAC
Mechanical life (ops): 2x107
Electrical life (ops): 1x105
