Quick Details

• OE Experience:

  No

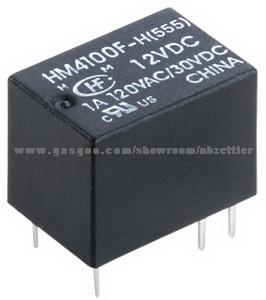

Product Name:Relay HM4100F/4101F

Relay HM4100F/4101F

Application

auto

Product Description:

Dimensionsmm) 15.7x11x12mm
Feature: Extremely low cost
2A switching capability
1 Form C configuration
Standard PCB layout
Wash tight and flux proofed types available
RoHS compliant
Contact data
Contact arrangement: 1C
Contact material: AgNi
Max. switching voltage: 300VAC/150VDC
Max. switching power: 240VA/30W
Contact rating (Res. Load): 2A 120VAC
1A 240VAC/30VDC
Coil data
Nominal voltage VDC: 3--24VDC
Coil power: 0.2W,0.36W,0.45W
Characteristics
Initial insulation resistance: 100M
Dielectric strength (between coil and contacts): 1000VAC
Mechanical life (ops): 1x107
Electrical life (ops): 1x105
