Quick Details

• OE Experience:

  No

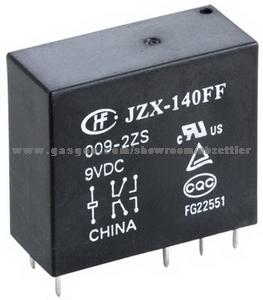

Product Name:Relaty JZX-140FF

Relaty JZX-140FF

Application

auto

Product Description:

Dimensionsmm) 29x13x25.5mm
Feature: 10A switching capability
5kV dielectric strength
Sockets available
Wash tight and flux proofed types available
1.5mm contact gap available
RoHS compliant
Contact data
Contact arrangement: 2A, 2C
Contact material: AgSnO2, AgCdO
Max. switching voltage: 250VAC/30VDC
Max. switching power: 2500VA/240W
Contact rating (Res. Load): 10A 250VAC
8A 30VDC
Coil data
Nominal voltage VDC: 3--60VDC
Coil power: 0.55W,0.8W
Characteristics
Initial insulation resistance: 1000M
Dielectric strength (between coil and contacts): 5000VAC
Mechanical life (ops): 1x107
Electrical life (ops): 1x105

Ningbo Zettler Electronics Co., Ltd. is the Sino-foreign Joint Venture Enterprise, specializing in researching, developing and mass producing electromagnetic relays and other electrical products. As a result of exerting for several years, it has become one of the largest development and production ...[Read More]

Company Profile:

• Main Product:

  relay

• Business Type:

  Manufacturer
