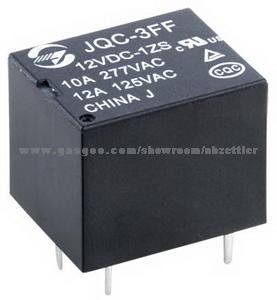

Detailed Product Description
Features:
15A switching capability;
Extremely low cost;
1 Form A and 1 Form C configurations;
Subminiature, standard PCB laylout;
Wash tight and flux proofed types available;
RoHS compliant;
Outline Dimensions: (19.0x15.2x15.5)mm
Contact data:
Contact arrangement: 1A, 1C;
Contact material: AgSnO2, AgCdO;
Max. switching voltage: 277VAC/30VDC;
Max. switching power: 2770VA/210W;
Contact rating (Res. Load): 10A 277VAC/28VDC;
Coil data:
Nominal voltage VDC: 5--48VDC;
Coil power: 0.36W(48VDC:0.51W);
Characteristics:
Initial insulation resistance: 100M;
Dielectric strength (between coil and contacts): 1500VAC 1min;
Mechanical life (ops): 1107;
Electrical life (ops): 1105
