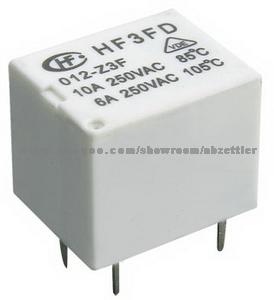

Product Name:Relay HF3FD

Relay HF3FD

Application

auto

Product Description:

Dimensionsmm) 19x15.2x15.5mm
Feature: Extremely low cost
2.5kV dielectric strength
Flammability class according to UL94, V-0
CTI 250, VDE 0631/0700
Product in accordance to IEC 60335-1
RoHS compliant
Contact data
Contact arrangement: 1A, 1C
Contact material: AgSnO2, AgNi
Max. switching voltage: 277VAC/30VDC
Max. switching power: 2770VA
Contact rating (Res. Load): 1H:10A 250VAC
1Z:10A250VAC
NO/NC:7A/3A 250VAC
NO/NC:5A/5A 250VAC
Coil data
Nominal voltage VDC: 3--48VDC
Coil power: 0.36W
Characteristics
Initial insulation resistance: 100M
Dielectric strength (between coil and contacts): 2500VAC
Mechanical life (ops): 1x107
Electrical life (ops): 1x105
