Quick Details

• OE Experience:

  No

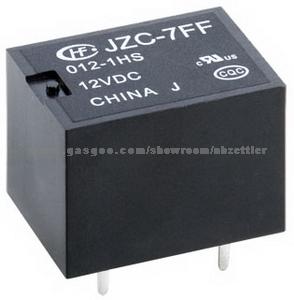

Product Name:Relay JZC-7FF

Relay JZC-7FF

Application

auto

Product Description:

Dimensionsmm) 22.5x16.5x16.5mm
Feature: 10A switching capability
Low cost, Small package
1 Form A and 1 Form C configurations
Wash tight and flux proofed types available
RoHS compliant
Contact data
Contact arrangement: 1A, 1C
Contact material: AgSnO2, AgCe
Max. switching voltage: 250VAC/30VDC
Max. switching power: 3324VA/360W
Contact rating (Res. Load): 10A 277VAC/28VDC
5A 240VAC/30VDC
Coil data
Nominal voltage VDC: 3--48VDC
Coil power: 0.36W(48VDC:0.51W)
Characteristics
Initial insulation resistance: 100M
Dielectric strength (between coil and contacts): 1500VAC
Mechanical life (ops): 1x107
Electrical life (ops): 1x105
