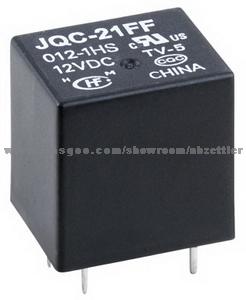

Dimensionsmm) 20.2x16.5x20.2mm
Feature: 15A switching capability
Extremely low cost
1 Form A and 1 Form C configurations
Standard PCB layout
Wash tight & flux proofed types available
RoHS compliant
Contact data
Contact arrangement: 1A, 1C
Contact material: AgSnO2, AgCdO
Max. switching voltage: 250VAC/30VDC
Max. switching power: 1800VA/240W
Contact rating (Res. Load): 1H:15A 120VAC
TV--5
1Z:10A 120VAC
Coil data
Nominal voltage VDC: 5--48VDC
Coil power: 0.36W(48VDC:0.51W)
Characteristics
Initial insulation resistance: 100M
Dielectric strength (between coil and contacts): 1500VAC
Mechanical life (ops): 1x107
Electrical life (ops): 1x105
