Product Attribute:
Type:Dry Charged Battery
Capacity:51 - 80AH
Voltage:3.2V
Size:55*168*140mm
Place of Origin:Guangdong China (Mainland)
Brand Name:G-Power
Model Number:GPLFP55168140/50Ah
battery manufacturer:CE,UN38.3,MSDS
Color:White
Aplication:Electric car,Solar or wind energy storage
Impedance:< 0.8 mΩ
Specific Energy:98Wh/Kg
Volumetric Specific Energy:146Wh/L
Environment:Non-toxic
Security:No fire,explosion,leakage
Lifespan:80%DOD ≥2000 times; 70%DOD ≥3500 times
Welcome:sample order
Production Description:
Product Description
Battery manufacturer zero pollution zero discharge the most safety
| Model No. | Voltage | Capacity | Battery type | Lifespan | Impedance | Dimensions | Weight |
GPLFP11192320 /50AH | 3.2V | 50AH | LiFePO4 | >2000times | <2m Ω | 11.6*193*320mm | 1380g |

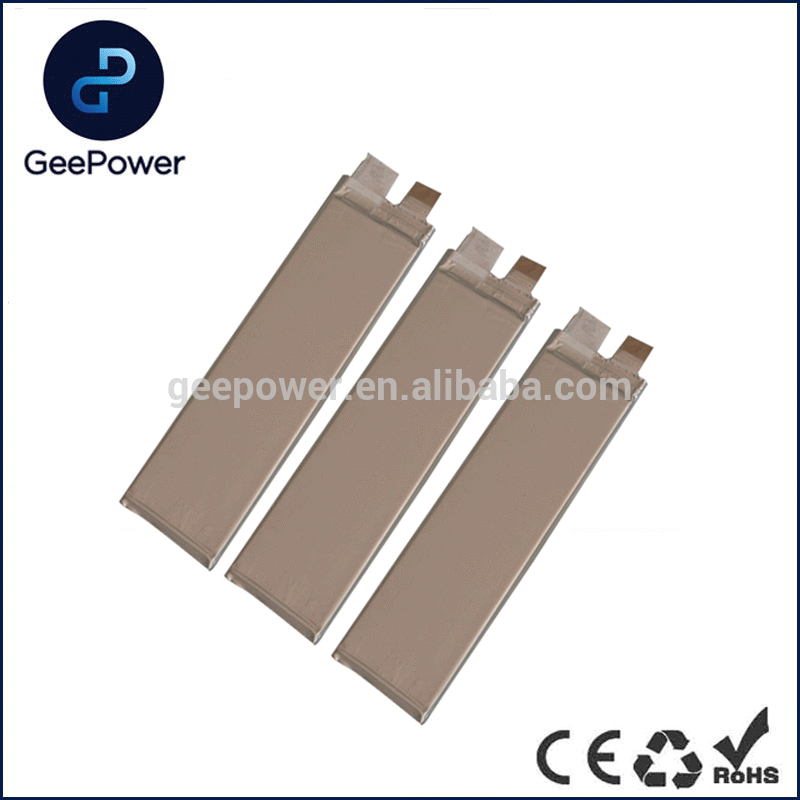

3.2v rechargeable lifepo4 battery cell Charateristics
a. Soft polymer pack ,electrolyte reduced design, can be operated in any position.
b. Low internal resistance,less than 2mΩ
c. Flexible design to meet customer's unique requirement;
d. Basic cells are mass produced and easy to build stable and consistent large capacity battery packs;
e. Suitable for high rate charge and discharge.
3.2v 50ah rechargeable lifepo4 battery cell detailed specification
| Model | GPLFP11192320/50AH |
| Nominal Capacity | 50AH |
| Impedance | <2mΩ |
| Weight | 1380g |
| Voltage | Norminal voltage | 3.2V |
| Charge voltage(CC-CV) | 3.65V |
| Discharge cut-off voltage | 2.0V |
| Discharge current | Max. dicharge current | 1C5A |
| Max. pulse dicharge current | 3C5A |
Charge current (CC-CV) | Max. charge current | 1C5A |
| Standard charge current | 0.3 C5A |
Operating Temperature | Charge | 0°c ~ 45°c |
| Discharge | -20°c ~60°c |
| Storage | -10°c ~ 45°c |
| Lifespan | 80% DOD > 2000times |
| 70% DOD > 3500times |
Operating temperature | Charge | 0~45°c |
| Discharge | -20~60°c |
| Storage humidity | <85% |
Pictures and dimensions
Performance testing graph
GeePower battery safety testing(No fire, no explosion,no leakage)
GeePower battery safety performance
| Item | Test name | Result |
| 1 | Over charge | No fire,no explosion |
| 2 | Over discharge | No fire,no explosion |
| 3 | Short Circuit | No fire,no explosion |
| 4 | Drop | No fire,no explosion,no leakage |
| 5 | Hot oven | No fire,no explosion |
| 6 | Crush | No fire,no explosion |
| 7 | Needle puncture | No fire,no explosion |
Company Information
Why choose GeePower Battery?
GeePower battery production process
Our Services
Battery quality control for after-sale
All of GeePower battery cells in a pack are with very high consistency.In a pack, each cell has its own sole electronic code(ID number) for quality control after-sale. Assume one cell in a pack is damaged in any reason after several years later, we could provide a exactly same cell to the client to replace this damaged one(same voltage, capacity, impedance,etc.), in order to make sure all of the cells in this pack with very high consistency. GeePower has a strong system working for this.
GeePower Customer Feedback
We are happy with your battery quality. I've also been very happy with your good support,
let's continue discussions and work on more,tks.----Michael (from Berlin,Germany)
GeePower battery Warranty
more than 2 years(depend on different application)
Order information
Sample is avaliable and welcome.
Trade term: FOB Shenzhen or Guangzhou; EXW, CIF,DDU and DDP are available.
Delivery time: 7 working days for sample order, 15- 25 working days for mass order.
Packaging & Shipping
Packing info
| Product name | Item No. | QTY | Wooden box dimensions(mm) | Gross weight(kg) |
| Length | Width | Height |
| 50ah battery cell | GPLFP11192320 /50ah | 7 | 400 | 250 | 150 | 9.8 |
Trading process
Trade with
Shipping way
please send message to us through the table as below for getting more info about this product,other customized projects,detailed quotation,or various trade terms. Our team is ready to support you.
Thanks for your time.
