Product Attribute:
Production Description:
Product Description

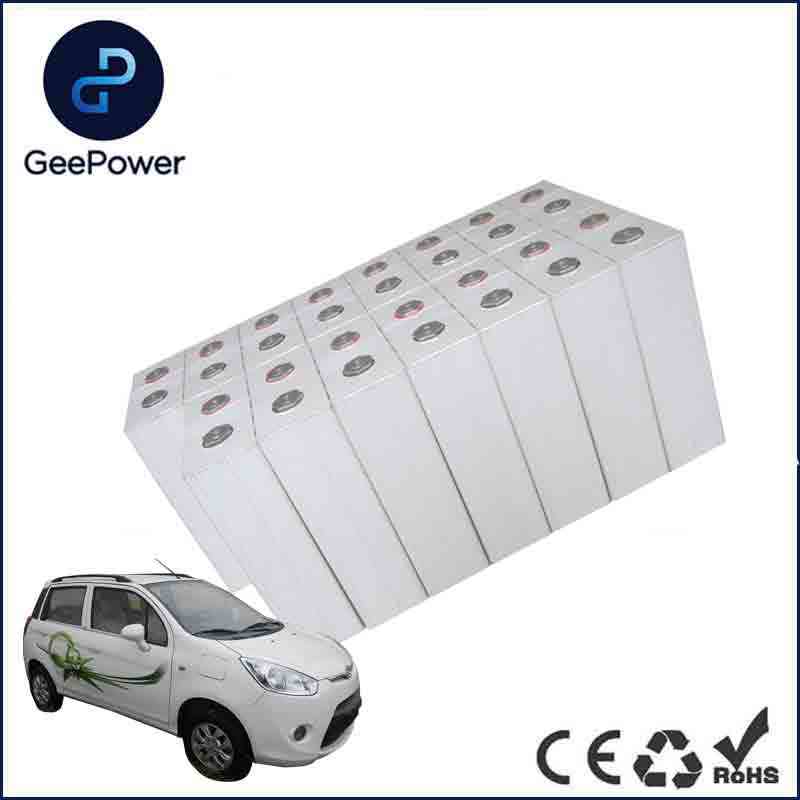

v6 battery,144v 200ah lifepo4 battery,electric car battery packs
(Use 45pcs 3.2v 100ah battery cell assemble 144v 100ah battery)
|
Item No. |
Voltage |
Capacity |
battery type |
Lifespan |
Impedance
|
Specific Energy
|
Dimensions |
Weight |
|
G-BP144100A
|
144v |
100AH |
LiFePO4 |
>2000
cycles
|
< 0.5 mΩ |
110Wh/Kg |
700*555*295mm |
148.9kgs |
100ah LiFePo4 Batery for Electric Vehicle,car bateries,bateries for cars data sheet
|
Item No. |
Voltage |
Capacity |
battery type |
Lifespan |
Impedance
|
Specific Energy
|
Dimensions |
Weight |
|
GPLFP46182295
/100Ah
|
3.2v |
100AH |
LiFePO4 |
>2000
cycles
|
< 0.5 mΩ |
110Wh/Kg |
46*182*295mm |
3.3kgs |
3.2v 100ah lifepo4 battery Characteristics
1. Soft polymer pack, poor- electrolyte design, no need safety valve;
2. With reduced electrolyte,further enhancing battery safety and being able to be positioned in any direction;
3. Low internal resistance,less than 0.5 mΩ
4. Flexible design to meet customer's unique requirement;
5. Basic cells are mass produced and easy to build stable and consistent large capacity battery packs;
6. Suitable for high rate charge and discharge.
3.2v 100AH LiFePO4 battery detailed specification
|
Model |
GPLFP46182295/100AH |
|
Nominal Capacity |
100AH |
|
Impedance |
<0.5mΩ |
|
Specific Energy |
110wh/kg |
|
Volumetric Specific
Energy
|
162wh/l |
|
Weight |
3.3kg |
|
Voltage |
Norminal voltage |
3.2V |
|
Charge voltage(CC-CV) |
3.65V |
|
Discharge cut-off voltage |
2.5V |
|
Discharge current |
Max. charge current |
3C5A |
|
Standard charge current |
0.3 C5A |
|
Max. dicharge current |
3C5A |
|
Max. pulse dicharge current |
10C5A |
|
Charge current
(CC-CV)
|
Max. charge current |
3C5A |
|
Standard charge current |
0.3 C5A |
|
Fast charge: 10min/50%, 30min/80%, 60min/100% |
|
Operating
Temperature
|
Charge |
0°c ~ 45°c |
|
Discharge |
-20°c ~60°c |
|
Storage |
-10°c ~ 45°c |
|
Lifespan |
80% DOD > 2000times |
|
70% DOD > 3500times |
|
Temperature
Resistance of case
|
Max. constant temperature |
135°c |
|
Instant temerature |
170°c |
|
Self discharge Rate |
<3%(per month) |
Pitures and dimensions
Performance testing graph
GeePower battery safety testing(No fire, no explosion,no leakage)
GeePower battery safety performance
|
Item |
Test name |
Result |
|
1 |
Over charge |
No fire,no explosion |
|
2 |
Over discharge |
No fire,no explosion |
|
3 |
Short Circuit |
No fire,no explosion |
|
4 |
Drop |
No fire,no explosion,no leakage |
|
5 |
Hot oven |
No fire,no explosion |
|
6 |
Crush |
No fire,no explosion |
|
7 |
Needle puncture |
No fire,no explosion |
Company Information
GeePower battery production process
Our Services
Battery quality control for after-sale
All of GeePower battery cells in a pack are with very high consistency.In a pack, each cell has its own sole electronic code(ID number) for quality control after-sale. Assume one cell in a pack is damaged in any reason after several years later, we could provide a exactly same cell to the client to replace this damaged one(same voltage, capacity, impedance,etc.), in order to make sure all of the cells in this pack with very high consistency. GeePower has a strong system working for this.
GeePower Customer Feedback
The batteriess are even better than expected and expectations, very good.----Antonio(from Livorno, Italy)
We are happy with your battery quality. I've also been very happy with your good support,
let's continue discussions and work on more,tks.----Michael (from Berlin,Germany)
Warranty
more than 2 years(base on different application)
Trade term
FOB Shenzhen,Guangzhou or Hongkong; EXW, CIF,DDU and DDP are available
Delievery time and Sample
15- 25 working days for mass order.
Sample is avaliable and welcome.
Packaging & Shipping
Packing info
|
Product name |
Item No. |
QTY |
Wooden case dimensions(mm) |
Gross weight(kg) |
|
Length |
Width |
Height |
|
144v 100AH Battery pack |
G-BP144100A
|
1 |
800 |
655 |
500 |
155 |
Trading process
Trade with
Shipping way
please send message to us through the table as below for getting more info about this product,other customized projects,detailed quotation,or various trade terms. Our team is ready to support you.
Thanks for your time.
