Product Attribute:
Type:Dry Charged Battery
Capacity:> 150AH
Voltage:3.2v
Size:90*127*225mm
Place of Origin:Guangdong China (Mainland)
Brand Name:G-Power
Model Number:GPLFP90127225 150AH
battery manufacturer:CE,UN38.3,MSDS
Color:White
Aplication:Electric car,Solar or wind energy storage
Impedance:< 0.5 mΩ
Specific Energy:114Wh/Kg
Volumetric Specific Energy:186Wh/L
Environment:Non-toxic
Security:No fire,explosion,leakage
Lifespan:80%DOD ≥2000 times; 70%DOD ≥3500 times
Welcome:sample order
Production Description:
Product Description
Power bank for car,Rc car battery pack,Power bank li polymer

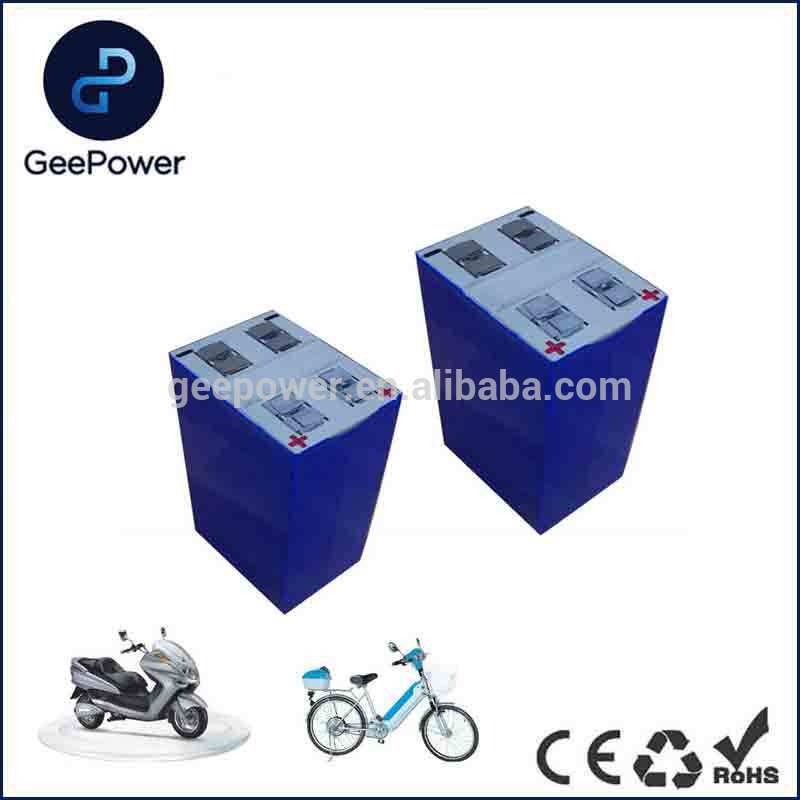

3.2v 150ah lifepo4 battery cell data sheet
| Item No. | Voltage | Capaciy | Battery Type | Lifespan | Impedance | Specific Energy | Dimensions | Weight |
GPLFP90127225 150AH | 3.2V | 150AH | LiFePO4 | >2000times | <0.5m Ω | 114wh/kg | 90*127*225mm | 4.2kg |
rechargeable 150ah battery cell Characteristics
a. Soft polymer pack ,electrolyte reduced design, can be operated in any position.
b. Low internal resistance,less than 0.5 mΩ
c. Flexible design to meet customer's unique requirement;
d. Basic cells are mass produced and easy to build stable and consistent large capacity battery packs;
e. Suitable for high rate charge and discharge.
150AH LiFePO4 battery cell detailed specification sheet
| Model | GPLFP90127225/150AH |
| Nominal Capacity | 150AH |
| Impedance | <0.5mΩ |
| Specific Energy | 114wh/kg |
Volumetric Specific Energy | 186wh/l |
| Weight | 4.2kg |
| Voltage | Norminal voltage | 3.2V |
| Charge voltage(CC-CV) | 3.65V |
| Discharge cut-off voltage | 2.5V |
| Discharge current | Max. charge current | 3C5A |
| Standard charge current | 0.3 C5A |
| Max. dicharge current | 3C5A |
| Max. pulse dicharge current | 10C5A |
Charge current (CC-CV) | Max. charge current | 3C5A |
| Standard charge current | 0.3 C5A |
| Fast charge: 10min/50%, 30min/80%, 60min/100% |
Operating Temperature | Charge | 0°c ~ 45°c |
| Discharge | -20°c ~60°c |
| Storage | -10°c ~ 45°c |
| Lifespan | 80% DOD > 2000times |
| 70% DOD > 3500times |
Temperature Resistance of case | Max. constant temperature | 135°c |
| Instant temerature | 170°c |
| Self discharge Rate | <3%(per month) |
Pitures and dimensions
Performance testing graph
GeePower battery safety testing(No fire, no explosion,no leakage)
GeePower battery safety performance
| Item | Test name | Result |
| 1 | Over charge | No fire,no explosion |
| 2 | Over discharge | No fire,no explosion |
| 3 | Short Circuit | No fire,no explosion |
| 4 | Drop | No fire,no explosion,no leakage |
| 5 | Hot oven | No fire,no explosion |
| 6 | Crush | No fire,no explosion |
| 7 | Needle puncture | No fire,no explosion |
Company Information
Why choose GeePower Battery?
GeePower battery production process
Our Services
GeePower battery Warranty
more than 2 years(depends on different application)
Battery quality control for after-sale
All of GeePower battery cells in a pack are with very high consistency.In a pack, each cell has its own sole electronic code(ID number) for quality control after-sale. Assume one cell in a pack is damaged in any reason after several years later, we could provide a exactly same cell to the client to replace this damaged one(same voltage, capacity, impedance,etc.), in order to make sure all of the cells in this pack with very high consistency. GeePower has a strong system working for this.
GeePower Customer Feedback
We are happy with your battery quality. I've also been very happy with your good support,
let's continue discussions and work on more,tks.----Michael (from Berlin,Germany)
Order information
FOB Shenzhen,Guangzhou or Hongkong; EXW, CIF,DDU and DDP are available.
Sample and delievery time
Sample is available and welcome, can be customized.
delievery time: 7working days for sample, 25 working days for mass production.
Packaging & Shipping
Packing
| Product name | Item No. | QTY | Carton box dimensions(mm) | Gross weight(kg) |
| Length | Width | Height |
| 150AH Battery module | GPLFP90127225 /150Ah | 2 | 300 | 220 | 200 | 9.7 |
Trade process
Trade with
Shipping way
please send message to us through the table as below for getting more info about this product,other customized projects,detailed quotation,or various trade terms. Our team is ready to support you.
Thanks for your time.
