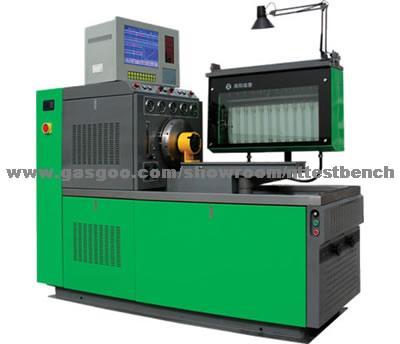

12PSBG-7F Industrial Injection Pump Test Bench

Applicationt:

the system is suitable for detection of BOSCH, DENSO, DELPHI and SIEMENS common rail pump and injectors. Such as CP1, CP2.CP3, HP3 series injector pump and the type.

Production Description:

It adopts advanced frequency technology and industrialized computer control technology, with speed, temperature, count numeral control, LCD double control and dual display system, equipped with displacement sensor and relevant attachments for measuring all kinds of domestic and international high pressure oil pumps.

Technical parameter:
1. Adjustable rotation speed range: 0~4000rpm
2. Double series of graduates: 45/150CC
3. Volume of oil tank: 100L
4. Temperature stabilization: 40±2
5. Test oil filtering unit: 5
6. DC. Supply: 12/24V
7. Feed pressure: 0~0.4MPa (low), 0~4MPa (high)
8. Air pressure (MPa): -0.03~0.3
9. Rack travel range: 0~25mm
10. 3-phase power supply: 380V/50Hz or on request
11. Flywheel inertias moment: 0.8kg·m²
12. Center height: 125mm
13. Output power: 7.5kw~15kw
14. Overall dimensions: 200X90*170CM
15. Net weight (kg): 1000.
16. Average trouble-tree working time of test stand: 2500h.
17.Color of test bench : Green /yellow  or on request

Functions:
1. Test and debugging about oil supply amount and uniformity each cylinder of injection pump.

1.
   Check the oil supply spacing of each cylinder and oil supply starting point in the static state.
2. Check and adjust the performance of mechanical speed controller.
3. The sealing inspection of pump body.
4. The test of solenoid valve of distribution pump.
5. The test of return oil of distribution pump.
6. Measure the interior pressure of distribution pump.
7. Check the vacuum capacity regulators.
8. Check the pressure of compensator.
9. Checking the fuel supply pump.
10. Measure the advance timer device
11. User can change the tempreature
12. Full-automatic seal unload the oil.


Main Characteristics:
1.  Industrial LCD

1.
   English and Chinese menu;
2. Measuring the Rack Bar journey exactly.
3. Debug speed curve of injecting oil pump.
4. Automatic oil unloading device
5. Print and keep debugging data of pump.
6. Large inertia flywheel--- steady drive and good balance.

8.Color of test bench : Green /yellow  or on request
