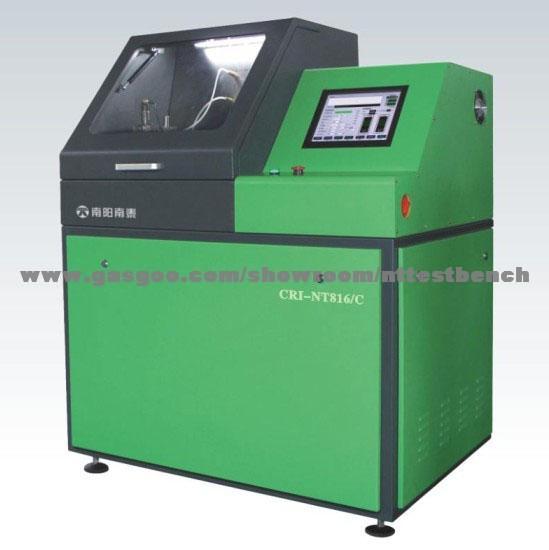

CRI-NT816C Common Rail Injector Test Bench

CRI-NT816C Common Rail Injector Test Bench

Application:  the system is suitable for ...

Market Type:  After Market


the system is suitable for detection of BOSCH, DENSO, DELPHI and SIEMENS common rail pump and injectors. Such as CP1, CP2.CP3, HP3 series injector pump and the type

Production Description:

Main technical parameters:
1. Rated output power: 7.5KW
2. Oil pump rotation speed: 0-3500rpm
3. Test rang of rail pressure: 0-1800bar
4.Test precision of rail pressure:±0.5Mpa
5.Test temperature of test oil:40±2
6. Filter precision of test oil: less than 5
7. Capacity of heavy tank: 28L
8. Dimension: 1200X560X1650MM
9. Aggregate weight: 350KG
10.Electricity: 380V, 50Hz, 3 phase
1. High pressure washing: faults caused by pollution from injector can be corrected.
2. Injection volume test: injection & return volume in different working conditions such as rating, idling, correction and pilot injection be tested through the flow sensor. Monomial and overall property of injector can be judged automatically
3. Atomization test: Observe to judge atomization effect of injection nozzle and whether the injector orifice is obstructed.
4. Sealing performance test: check whether nozzle, nozzle cap nut and electromagnetic valve body leak oil.
5. Inquiry, store and print data and custom information.
Characteristics of Equipment:
1. Industrial Temperature control system to realize constant oil temperature
2. Precision of rail pressure adjusted by DRV is high
3. Computer control, 10.4 inch liquid crystal rolling display, touch-type operation.
4. China-made flow sensor  equippped to measure the fuel quantity.
5. Original Bosch common-rail pump and pressure rail system are provided according to CP1 standard
6. Frequency control of the motor speed can realize the functional tests in different rotation speed.
7. Precision measurement, simple operation, low noise, and energy conservation
