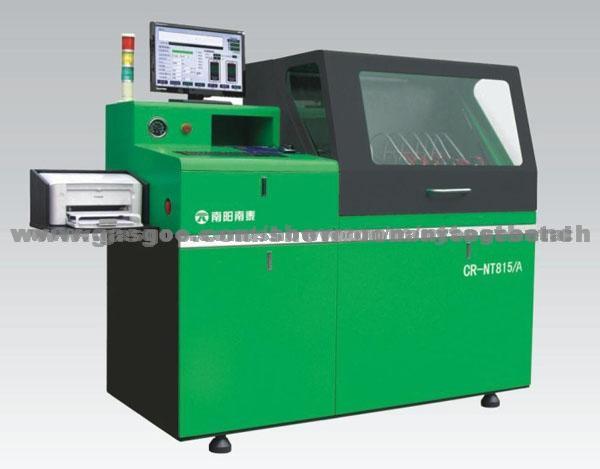

CR-NT815A common rail test bench

CR-NT815A common rail test bench

Typical Clients:  Nanyang Nantai

Market Type:  OE Market

Typical Clients:

Nanyang Nantai

Production Description:

CR-NT815A common rail test bench
Main technical parameters:
1. Power: 11kw, 15kw
2. Oil pump rotation speed: 0-4000turns
3. Test rang of rail pressure: 0-2000bar
4. Test precision of rail pressure: ±0.5Mpa
5. Test precision of flow sensor: 0.5%
6. Temperature of test oil:40±2
7. Filter precision of test oil: less than 5U
8. Capacity of heavy tank: 80L
9. Dimension: 1780X900X1800MM
10. Aggregate weight: 1000KG

Functions:


  1. Full-automatically test common rail pumps:
    • Injection volume, return volume
    • Pump chamber pressure
    • Oil supply pressure
    • Sealing performance
    • Functions of ZME valve
    • Clean the ZME valve separately
  2. Equipped Chinese flow sensor to test injection and backflow under the following status:
    •  Full-loaded
    •  Idling status
    •  Pre-injection
    •  Leak test
  3. Pump nozzle and electronic unit pump can be tested through additional adaptor & system.
  4. Test electronic high pressure pump such as VP37 VP44 by additional programming systems.
  5. Windows system and humanized operating procedure, data can be add by users, save printed data and customer information.
  6. Multi-machine network and remote control are available.

Equipment Characteristic:

  1. Full-automatic operation procedure, save the time to set up the data
  2. 70% import parts, China-made flow sensor is equipped
  3. Original common rail system , rail pressure can be controlled accurately through ZME & DRV
  4. Compact universal test bench can successively test 6 oil injectors in one setup.
  5. Remote control is convenient for service and software upgrading.
