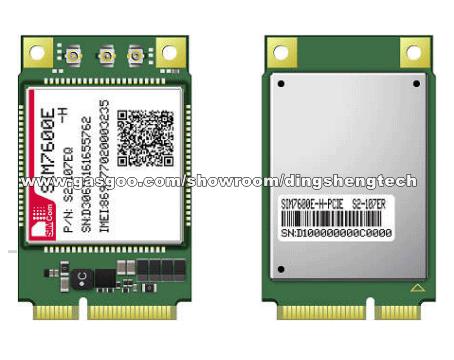

SIMCOM LTE Module SIM7600E-H-PCIE CAT4 4G Mini PCIE

Product Attribute:

Applicationt:

SIMCOM

Production Description:

  SIM7600X-H Mini PCIe is a complete multi-band LTE-FDD/LTE-TDD/HSPA+/UMTS/EDGE/GPRS/GSM module solution in Mini PCIe type which supports LTE CAT4 up to 150Mbps for downlink and 50Mbps for uplink data transfer.It is combined with a SIM7600X-H (LCC) module and a Mini PCIe adapter board.
  Variant for EMEA/Korea/Thailand
SIM7600E-H-PCIE

• LTE-TDD B38/B40/B41
• LTE-FDD B1/B3/B5/B7/B8/B20
• UMTS/HSPA+ B1/B5/B8
• GSM/GPRS/EDGE B3/B8

• Mini PCIe package
• Control Via AT Commands
• Supply voltage range: 3.0V~ 3.6V, 3.3V Typical
• Operation temperature: -40 to +85
• Dimension: 50.8*31*5.35mm
• Weight: 12.6g
• Band/3/5/10/15/20MHz
• 3GPP E-UTRA Release 11

• LTE CAT4
  - Uplink up to 50Mbps
  - Downlink up to 150Mbps
• HSPA+
  - Uplink up to 5.76 Mbps
  - Downlink up to 42 Mbps
• UMTS
  - Uplink/Downlink up to 384Kbps
• EDGE - Uplink/Downlink up to 236.8Kbps
• GPRS - Uplink/Downlink up to 85.6Kbps

• USB Driver for Microsoft Windows 2000/XP/Vista/Win7/Win8/Win10
• USB Driver for Linux /Android
• RIL supporting for Android 2.4/4.0/5.0/6.0/7.0
• MBIM to Win8
• Firmware update via USB
• TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS /HTTP/HTTPS/SMTP/SMTPS/DNS
• SSL3.0/TLS1.0/TLS1.2
• DTMF (Sending and Receiving)
• Audio Playing
• USB Audio and VoLTE
• FOTA
• eCall*

• USB2.0 with High speed up to 480Mbps
• UART
• GPIO
• Antenna: DL MIMO, Support Rx-diversity/GNSS active antenna
• (U)SIM card (1.8V/3.0V)
• Digital Audio through PCM (SIM7600X-H-PCIE)
• Analog Audio (SIM7600X-H-PCIEA)
• Embedded SIM card socket (SIM7600X-H-PCIE-SIM)
• GNSS: GPS/GLONASS/Beidou/Galileo

• RoHS Compliant
• CE(RED)/Deutsche Telekom/Orange*/TIM* (Europe)
• FCC/PTCRB/AT&T/GCF*/Verizon* (North America)
• CE(RED)/ACMA*/Telstra* (Australia)
• JATE/TELEC (Japan)
