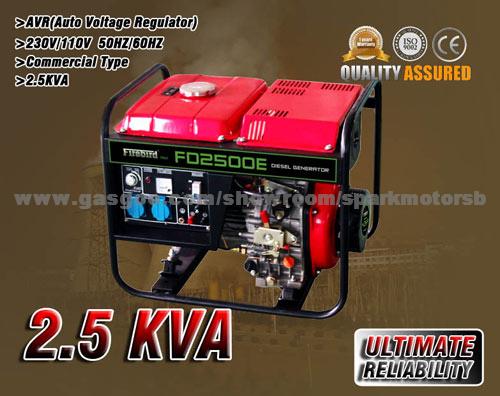

1.8-2.5-Open Type-Kw-Diesel Generator

1.8-2.5-Open Type-Kw-Diesel Generator

Market Type:  After Market

Product Attribute:

Production Description:

Frequency (Hz):50/60
Rated Power (KVA):1.7/2.0 Max Output (KVA):2.0/2.2
Voltage (V):230
DC Output: 12V/8.3A
Power factor (cos):1
Voltage regulation: Self-excitation constant voltage (AVR),
Alternator Level: 2,
Insulation class: B
Engine Type:170F, Single-cylinder, 4-stroke, Air-cooled, Direct injection diesel engine
Bore × Stroke (mm):70X55
Displacement (ml/cc):211
Compression Ratio:20:1
Rated Output (Kw/rpm): 2.5/3000,2.8/3600
Lube Oil (L):0.8
Fuel Tank (L):15
Noise Level (at 7m):73dBs
Starting System: Recoil
Single phase
Dimension L×W×H: 650×490×550mm
Net Weight: 55kg
