Product Attribute:
Applicationt:
DS-tech

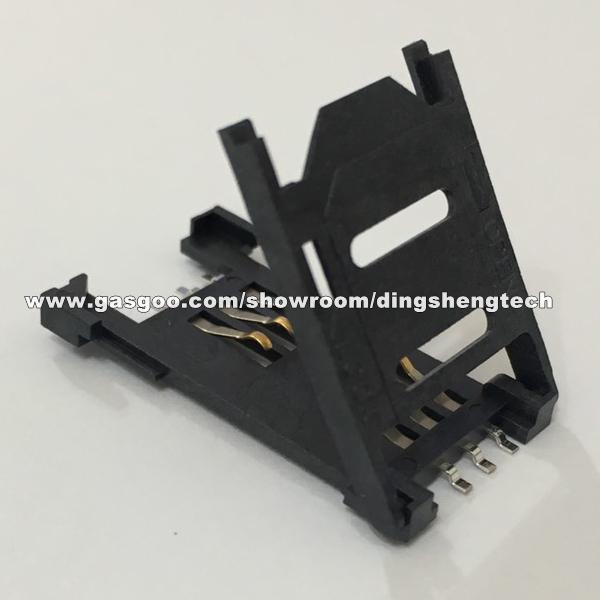

Production Description:
Material:
1. Body: PPS UL 94V-0 Rated, Color: Black
2. Cover: LCP UL 94V-0 Rated, Color: Black
3. Contact: Phosphor Bronze
4. Contact Plating: Gold Plating Over Nickel on Contact Area, Tin Plating on Solder Tail.
Spec:
1. Current Rating: 0.5 AMP. Max
2. Dielectric Withstanding Voltage: 500V AC R.M.S For One Minute
3. Insulation Resistance: 1000M Min. AT 500V AC
4. Contact Resistance: 30m Max.
5. Operating Temperature: -25 °C~ +85°C
6. Durability: 5000 Cycles
7. Processing Temp: 260°C for 30~60 Seconds Max
We also have GPS/GLONASS Module, GSM/3G Module, 4G/LTE Module, GPS mouse, GPS/GLONASS Antenna, GSM/3G Antenna, GPS/GSM Antenna, SIM Card Holder, RF Cable, RF Connector etc.
