24V 7inch LCD TFT Monitor With Quad Function (TOP-007LQ)

    • Application: for all vehicles
    • Market Type:After Market
    • EXW Price: USD 17
    • Payment Terms: T/T
    • Samples: Charge
    • Minimum Order: 1PCS

Quick Details

  • Voltage:


  • Display Size:


  • G.W:


  • Power:


  • Type:


  • Place of Origin:


  • Samples:


  • Sample Price:


  • Delivery Time:

    6~7 Working Days

  • Packing:

    Color Box Or White Box

  • Delivery Port:


  • Export Ratio:

    51% - 60%

  • OE Experience:

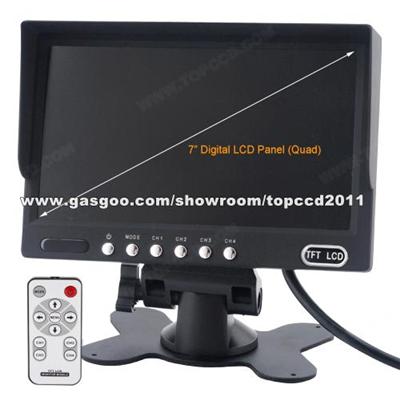

Product Name:24V 7inch LCD TFT Monitor With Quad Function (TOP-007LQ)

24V 7inch LCD TFT Monitor With Quad Function (TOP-007LQ)


for all vehicles

Product Description:

7inch Quad Mobile Vision Monitor TFT LCD Digital Reversing Screen Car Dashboard Rear view Display 12V to 32V Monitor for School bus,buses,trucks,farm tractor,heavy equipments,fork-lifts,RV and so on
. Model: TOP-007LQ
. Screen Size: 7-inch LCD Digital Panel A+
. Resolution: 800(W) x RGB x 480(H) (Default)
                     1024(W) x RGB x 600(H) (Optional)
. Video System: PAL/NTSC (AUTO)
. Screen Ratio: 16:9
. Brightness: 400cd/m2
. Contrast ratio: 500:1
. Viewing Angle: Hor. L(70) R(70) Ver. UP(50) DOWN(70)
. Video Inputs: 4CH
. Video Source: 1Vp-p, 75 (CVBS)
. Audio Inputs: 1CH
. Triggers: 4 Auto-triggers (wires incl. delay)
. OSD Menu Function: Image,Color, Brightness, Contrast, Volume, Multi-languages
. Image reversion: UP/Down and Left/Right
. Connectors: 4PIN or RCA Optional
. Operation Mode: Key or remote control
. Sunshade cap: Yes (Fixed)
. Bracket: Butterfly bracket (fan bracket / embedded frame optional)
. Power consumption: 7W
. Voltage Input: DC9V/32V wide voltage
. Operating Temperature: -10~+70 RH95% Max.
. Storage Temperature: -20~+80 RH95% Max.
