Quick Details

• Voltage:

  24V

• Display Size:

  9inch

• G.W:

  2kg

• Power:

  7w

• Type:

  TFT

• Place of Origin:

  China

• Samples:

  Charge

• Sample Price:

  52

• Delivery Time:

  6~7 Working Days

• Packing:

  Color Box Or White Box

• Delivery Port:

  Guangzhou

• Export Ratio:

  51% - 60%

• OE Experience:

  No

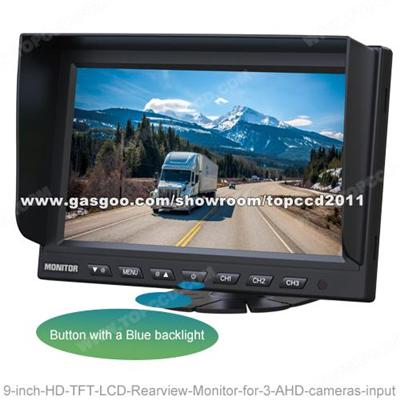

Product Name:Wide Screen 9inch HD TFT LCD Rearview Monitor For 3 AHD Cameras-Input (TOP-AHD009L)

Wide Screen 9inch HD TFT LCD Rearview Monitor For 3 AHD Cameras-Input (TOP-AHD009L)

Application

for all vehicles

Product Description:

9" Heavy duty mobile safety vision AHD digital monitor for 720p/960p/1080p cameras by cars rear obversation
.  Model: TOP-AHD009L
. Screen Size: 9-inch LED digital panel
. Resolution: 1024(W) x R.G.B x 600(H)
. Signal System: NTSC / PAL System Automatically
. Screen Ratio: 16:9
. Back Light Luminance: LED,300cd/
. View angle: Hor. L(70°) R(70°)   Ver. UP(50°) DOWN(70°)
. AV Inputs: 3CH HD video input,single image display,
                   support 720P@25/30,720P@50/60,1080P@25/30
. Input trigger: 3 Channels trig, time delayed triggering(TDT)support
. OSD control: Brightness,Contrast,SaturationVolume, Language
. Image reversion: UP/Down and Left/Right
. Key color: Black(Button with Blue back groud LED light)
. Connectors: 4PIN or RCA Optional
. Full-function remote control
. Heavy duty and strong housing / U bracket (Sector shape bracket optional)
. With sun visor for better view in strong light condition.(Removable)
. Operating Temperature: -10~+70 RH95% Max.
. Storage Temperature: -20~+80 RH95% Max.
. Power consumption: 5W
. Voltage Input: DC12V/24V
. Accessories: Remote controller,Power supply cable,U- Support Bracket,Hexagon wrench
