Quick Details

• Voltage:

  24V

• Display Size:

  7inch

• G.W:

  2kg

• Power:

  7w

• Type:

  TFT

• Place of Origin:

  China

• Samples:

  Charge

• Sample Price:

  47

• Delivery Time:

  6~7 Working Days

• Packing:

  Color Box Or White Box

• Delivery Port:

  Guangzhou

• Export Ratio:

  51% - 60%

• OE Experience:

  No

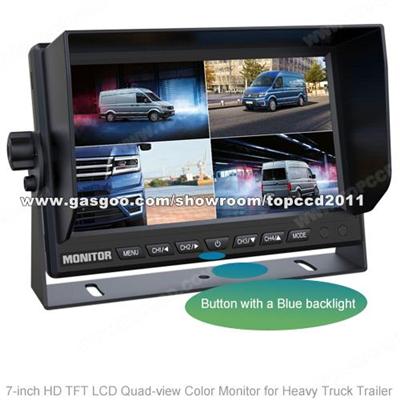

Product Name:7Inch AHD LCD Quad-View Monitor For Heavy Truck Trailer (TOP-AHD7004Q)

7Inch AHD LCD Quad-View Monitor For Heavy Truck Trailer (TOP-AHD7004Q)

Application

for all vehicles

Product Description:

7Inch AHD LCD Digital Reversing Screen Car Dashboard 12V to 24V Backup Display 4CHs Quad Split Monitor for Heavy Truck Trailer
. Model: TOP-AHD7004Q
. Screen Size: 7-inch color LED digital panel
. Resolution: 1024(W) x R.G.B x 600(H)
. Signal System: NTSC / PAL System Automatically
. Screen Ratio: 16:9 widescreen format
. Back Light Luminance: LED,300cd/
. View angle: Hor. L(70°) R(70°)   Ver. UP(70°) DOWN(70°)
. AV Inputs: 4 AHD Video Inputs,1/2/3/4 image display adjustable,Support 720P@25/30,720P@50/60,1080P@25/30
. Input trigger: Auto reverse trigger wire
. OSD control: Brightness,Contrast,SaturationVolume, Language
. Image reversion: Mirror or normal image
. Key color: Black(Button with Blue back groud LED light)
. Connectors: 4PIN or RCA Optional
. Full-function remote control
. Bracket Accessories: U shaped metal bracket (Sector shape bracket optional)
. With sun visor for better view in strong light condition.(Removable)
. Operating Temperature: -10~+70 RH95% Max.
. Storage Temperature: -20~+80 RH95% Max.
. Power consumption: 8W
. Power supply: DC12V-24V, Support ACC ignition
. Accessories: Remote controller,Power supply cable,U- Support Bracket,Hexagon wrench
