Quick Details

• Voltage:

  12V

• Display Size:

  7inch

• G.W:

  0.5kg

• Power:

  5w

• Place of Origin:

  China

• Samples:

  Free

• Delivery Time:

  6~7 Working Days

• Packing:

  Color Box Or White Box

• Delivery Port:

  Guangzhou

• Export Ratio:

  51% - 60%

• OE Experience:

  No

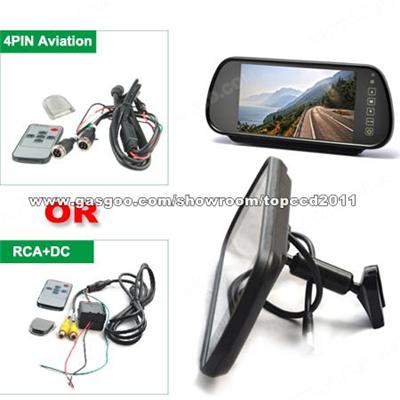

Product Name:AHD 7 Inch Replacement Rear View Mirror Monitor OEM Bracket (TOP-AHD7004MS)

AHD 7 Inch Replacement Rear View Mirror Monitor OEM Bracket (TOP-AHD7004MS)

Application

for all vehicles

Product Description:

7 Inch Large display/Touch screen OEM Slimline Mirror Monitor for AHD camera
. Model: TOP-AHD7004SM
. Screen Size: 7-inch LED digital panel
. Resolution: 800(W) x R.G.B x 480(H)
. Signal System: NTSC / PAL System Automatically
. Screen Ratio: 16:9
. Back Light Luminance: LED,500cd/
. View angle: Hor. L(70°) R(70°)   Ver. UP(70°) DOWN(70°)
. AV Inputs: 2CH HD video input,single image display,
                   Support 720P@25/30,960P@50/60, 1080P@25/30
. Audio Inputs: Optional
. Input trigger: Automatically switch to V2 when reversing
. OSD control: Brightness,Contrast,SaturationVolume, Language
. Image reversion: No
. Connectors: 4PIN or RCA Optional
. IR remote control
. Screen position: In the middle
. Operation Mode: Touch key / Remote controller
. Material: PVC
. Color: Black
. Installation: Replace the original car mirror
. Power consumption: 5W
. Voltage Input: 12/24 Volt
. Dimension: W: 250mm x H: 108mm x D: 23mm (Excluding mounting stalk)
. Operating Temperature: -10~+70 RH95% Max.
. Storage Temperature: -20~+80 RH95% Max.

Topccd provides intelligent vehicle monitoring products and solutions, such as 1080P MDVR, 360° Vision System,Radar Detection System and Wi-Fi System...we have our own factory and cooperated factories for producing different auto equips products. With years experience and based on a ...[Read More]

Company Profile:

• Main Product:

  1080p Mdvr, 360° Vision System, Radar Detection System and Wi-fi System, Backup Camera, Tft Lcd Monitor, Mobile Dvr, Parking Sensor, Vehicle Warning Alarm, Waterproof Lcd Monitor, Hd Ip Camera, Ultrasonic Detection System, Heavy Duty Parking Sensor, Brake Light Reverse Camera, Side View Camera, Mobile Vision Safety Systems, Wireless Mobile Vision Systems

• Business Type:

  Manufacturer

• Current Export Market:

  North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Mid East, Africa, Oceania

Factory Profile:

• Number of Employees:

  51 - 100 People
