rated load':1200kg
total weight:3360kg
Overall Dimensions (L x W x H) :5040*1680*2600 mm

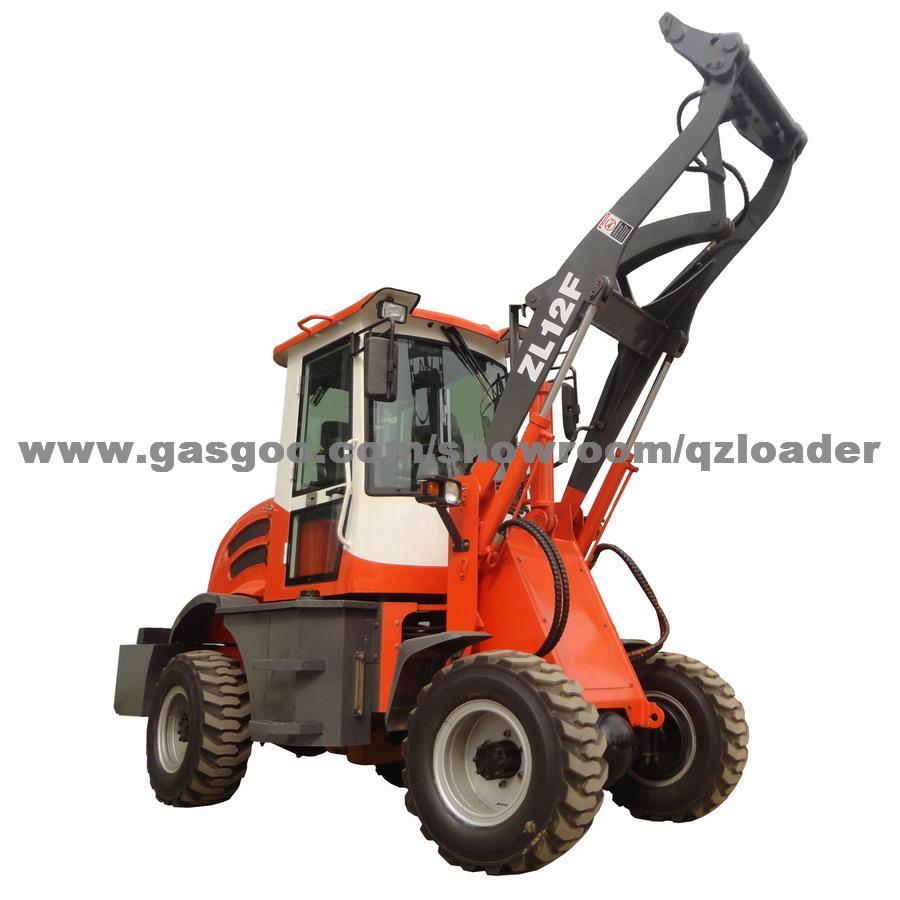

front end loader, mini wheel loader
1 .Rated Load 1200 kg 2. Total Weight 3360 kg 3. Rated Bucket Capacity 0.6 CBM 4. Max. Tractive Force 30 KN 5. Max. Breakout Force 32 KN 6. Max. Gradeability 38° 7. Max. Dumping Height 2800 mm 8. Max. Dumping Reach 1000 mm 9. Raising Time 5.0 s 10. Total Cycle Time 9.5 s 11. Overall Dimensions (L x W x H) 5040*1680*2600 mm 12. Min. Turning Radius 3200 mm 13. Engine Model CHANGCHAI 4L68 14. Engine Type Four-cylinder, Inline, Water-cooled, Four-stroke Diesel Engine 15. Engine Rated Power 37 kW 16. Engine Rated Speed 2200 rpm 17. Engine Min. Fuel Consumption Ratio 230 g/kWh 18. Transmission System ZL240 Integrated Hydraulic Torque Converter 19. Gear Shift 1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed 20. Max. Speed 25 km/h 21. Model of Drive Axle 50 Drive Axle 22 . Wheel Tread 1400 mm 23. Wheel Base 2150 mm 24. Drive Mode 4-wheel Drive 25. Hydraulic System Working Pressure 16 Pa 26. Fuel Tank Capacity
