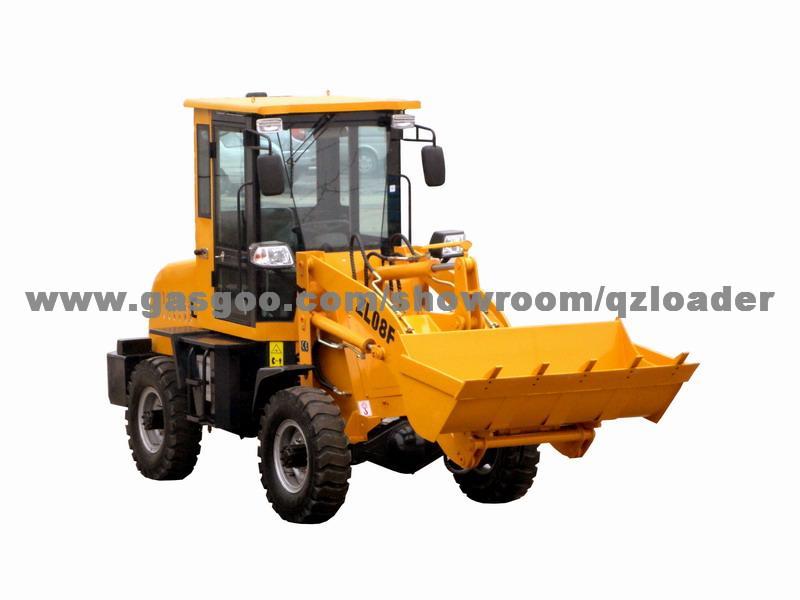

wheel loader, mini loader, front end loader
1 .Rated Load 800 kg 2. Total Weight 2400 kg 3. Rated Bucket Capacity 0.3 CBM 4. Max. Tractive Force 28 KN 5. Max. Breakout Force 21 KN 6. Max. Gradeability 38° 7. Max. Dumping Height 2680 mm 8. Max. Dumping Reach 900 mm 9. Raising Time 4.0 s 10. Total Cycle Time 9.0 s 11. Overall Dimensions (L x W x H) 4800*1640*2550 mm 12. Min. Turning Radius 3000 mm 13. Engine Model CHANGCHAI L28 14. Engine Type Single-cylinder, Horizontal, Water-cooled Evaporative, Four-stroke Diesel Engine 15. Engine Rated Power 20 kW 16. Engine Rated Speed 2200 rpm 17. Engine Min. Fuel Consumption Ratio 244.8 g/kWh 18. Transmission Mode Mechanical Shift 19. Gear Shift 2 Forward, 1 Reverse, High & Low Speed 20. Max. Speed 25 km/h 21. Model of Drive Axle 50 Drive Axle 22. Wheel Tread 1330 mm 23. Wheel Base 2130 mm 24. Drive Mode 4-wheel Drive 25. Hydraulic System Working Pressure 16 Pa 26. Fuel Tank Capacity 50 L
