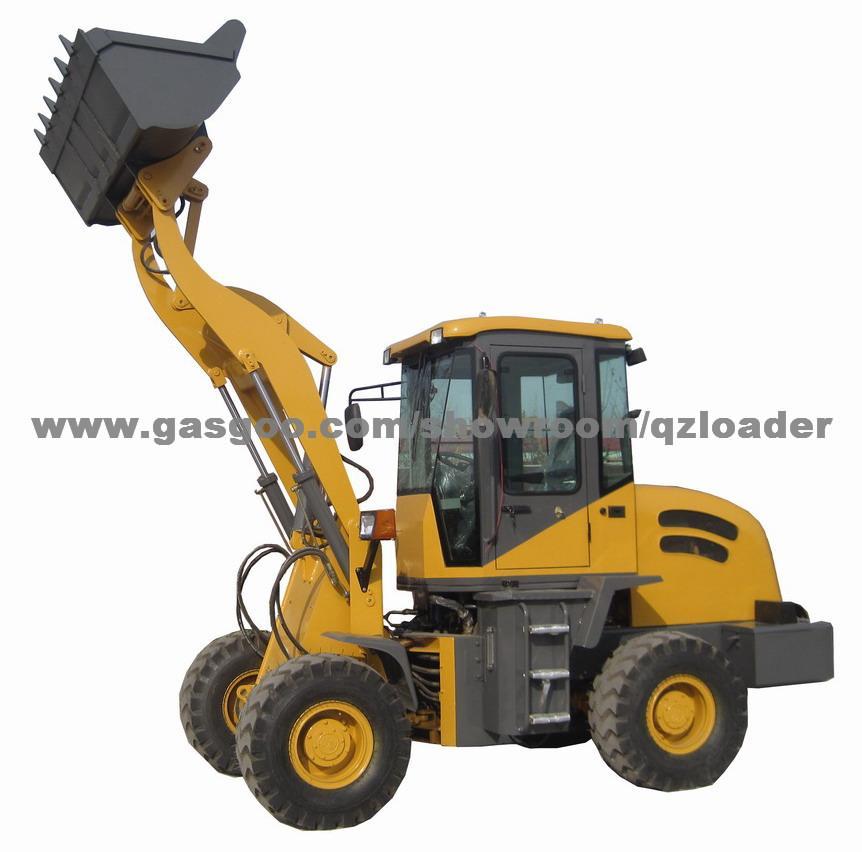

1.6T Small Loader ZL16F

Product Attribute:

rated load:1600kg

total weight:3900kg

rated bucket capacity:0.7 - 1.0 m3

Overall Dimensions (L x W x H):5060*1690*2630 mm

engine model:WEICHAI HUAFENG ZHBG14-A / Cummins B3.3 (EPA Tier IV)

rated power:44 kW / 45 kW (60HP)

tyre:14-17.5-14PR

Applicationt:

wheel loader, front loader

Production Description:

1 .Rated Load: 1600 kg
2. Total Weight: 3900 kg
3. Rated Bucket Capacity: 0.7 CBM
4. Max. Tractive Force: 30 KN
5. Max. Breakout Force: 32 KN
6. Max. Gradeability: 38°
7. Max. Dumping Height: 2800 mm / 3200 mm
8. Max. Dumping Reach: 1000 mm
9. Raising Time: 5.0 s
10. Total Cycle Time: 9.5 s
11. Overall Dimensions (L x W x H): 5060*1690*2630 mm
12. Min. Turning Radius: 3200 mm
13. Engine Model: WEICHAI HUAFENG ZHBG14-A / Cummins B3.3 (EPA Tier IV)
14. Engine Type: Four-cylinder, Inline, Water-cooled, Four-stroke Diesel Engine
15. Engine Rated Power: 44 kW/45 kW (60HP)
16. Engine Rated Speed: 2200 rpm
17. Engine Min. Fuel Consumption Ratio: 230 g/kWh
18. Transmission System: ZL265 Integrated/Split Hydraulic Torque Converter
19. Gear Shift: 1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed
20. Max. Speed: 25 km/h
21. Model of Drive Axle: ZL16 Hub Reduction Axle (small)
22 . Wheel Tread: 1430 mm
23. Wheel Base: 2170 mm
24. Drive Mode: 4-wheel Drive
25. Hydraulic System Working Pressure: 16 Pa
26. Fuel Tank Capacity: 90 L
27. Service Brake: Foot Pedal Vacuum Booster, Air Over Hydraulic Caliper Disc Brake on 4 Wheels
28. Parking Brake: Hand Lever Flexible Shaft Controlled Disc Brake
29. Tire Type Specification: 14-17.5-14PR
30. Front Tire Pressure: 0.40 Mpa
31. Rear Tire Pressure: 0.35 Mpa
