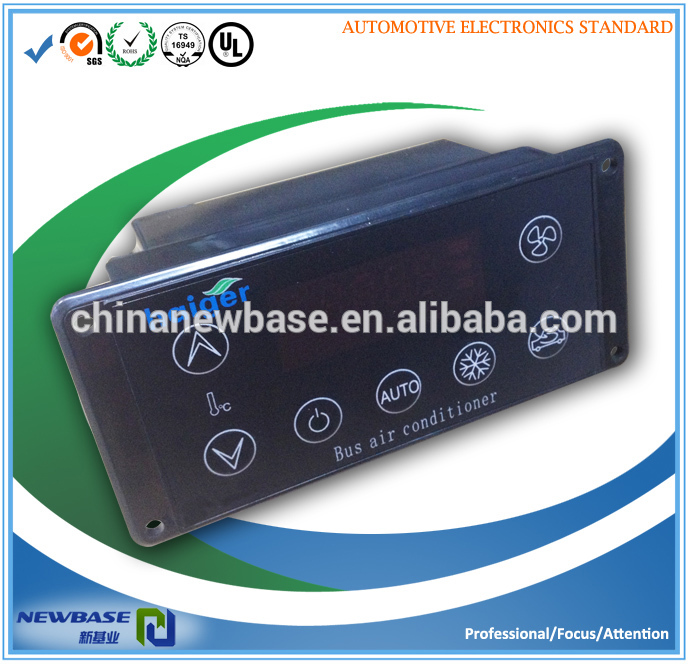

CK200218 Auto AC Controller Bus Cooling Control Panel
CK200218 automatic controller applies to bus internal climate control.
Main function
Auto control ,Cooling, Fresh air ,Power-down memory ,Error alarm ,Interior & Exterior temp display ,Multi-air volume regulation, Auto voltage protection
The shift function
Application:
TAICHANG,CHUANGDAO
Technical data
Power supply
DC24V/DC12V
Power consumption
3w
Current
Max.200mA
Dimensions(mm)
132X62X54
Input
1)Air Inlet sensor (25 °c ,Rb=5k,b=3274)
2)Defrost sensor( 25 °c ,Rb=5k,b=3274 )
3)Pressure switch
4) ACC power(battery)
5)Backlight power
Output
1) Fan high ( Max.0.3A )
2)Fan medium ( Max.0.3A )
3)Fan low ( Max.0.3A )
4)Fresh air on ( Max.0.3A )
5)Fresh air off( Max.0.3A )
6)Compressor clutch ( Max.0.3A )
Display
LED
Ambient temperature
-30°c—80°c 5%-95%RH Non-condensing
Storage temperature
-10°c—70°c 5%-95%RH Non-condensing
Display precision
Temp value. Dual digit display, Accuracy,1 °c
Faceplate level
IP43
EMC level
EN50081&EN50082-2
Security level
Applied to EN61010-II,Pollution degree :II
Weight:
260g
