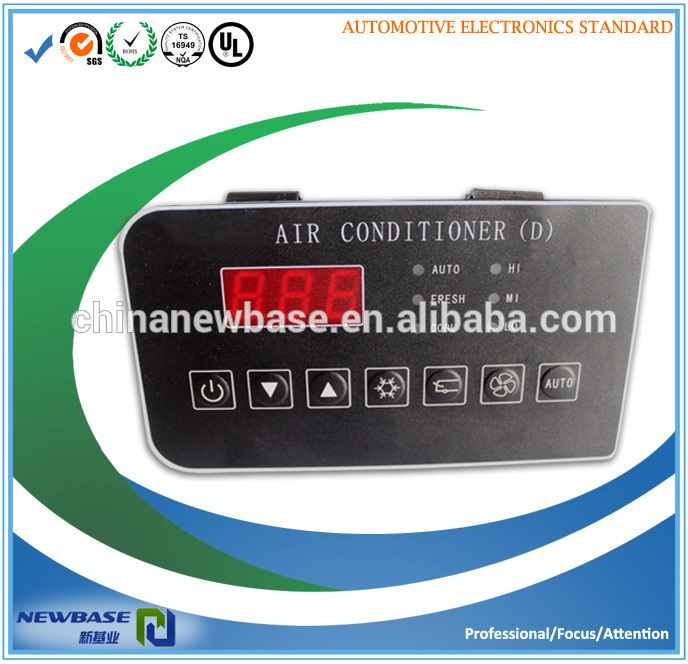

CK20106912 best price higer bus ac control panel auto air condition panels for higer bus
CK20106912 auto controller applies to bus internal climate control
Main functions:
The shift function:
Application:
Higer
Technical data
Power supply
DC24V/DC12V
Power consumption
3W
Current
Max.200mA
Dimensions(mm)
139.6x78.7x40mm
Input
1) Air inlet temp. sensor(25°c,Rb=5k,B=3274)
2)Defrost sensor( 25°c,Rb=5k,B=3274)
3)Pressure switch
4)ACC power
5)Backlight power
Output
1)Condenser fan(Max.0.3A)
2)Fan high (Max.0.3A)
3)Fan medium (Max.0.3A)
4)Fan low (Max.0.3A)
5)Fresh air on (Max.0.3A)
6)Compressor clutch (Max.0.3A)
7)Excitation (Max.0.3A)
Display
LED
Ambient temperature
-30°c—80°c 5%-95%RH Non-condensing
Storage temperature
-10°c—70°c 5%-95%RH Non-condensing
Display accuracy
Temp value. Dual digit display, Accuracy,1 °c
Faceplate level
IP43
EMC level
EN50081&EN50082-2
Security level
Applied to EN61010-II,Pollution degree :II
Weight
315g
