Product Attribute:
Supply Ability:10000 Set/Sets per Month
Delivery Details:10 days after receipt of payment
Production Description:
Product Description
Functions
Continuously adjust the valve by switching polarity of actuator wiring, at same time, the unit will send the valve openning signal back to control system.
|
Voltage
|
DC 12V/24V
|
Dimension
|
112x57x72(mm)
|
|
Medium
|
Cold/hot water
|
Medium temperature
|
-5 ~ 100 centigrade
|
|
Flow characteristic
|
Continuous
|
Application
|
AC system of bus, truck, car, agricultural machinery
|
|
Item Name
|
5-wire water valve
|
Model Number
|
NB201023-A
|
|
Max diameter
|
DN10
|
Leakage rate
|
< 1L/h
|
|
Interface form
|
Hoop
|
Installation
|
Horizontally, Upright
|
|
Working life
|
200,000 Times
|
Warranty
|
18 months
|
|
MOQ
|
10 piece
|
Price
|
USD 14-17
|
|
Certification
|
ISO9001,TS16949,Rohs
|
Delivery Port
|
Qingdao/Shanghai/Guangzhou
|

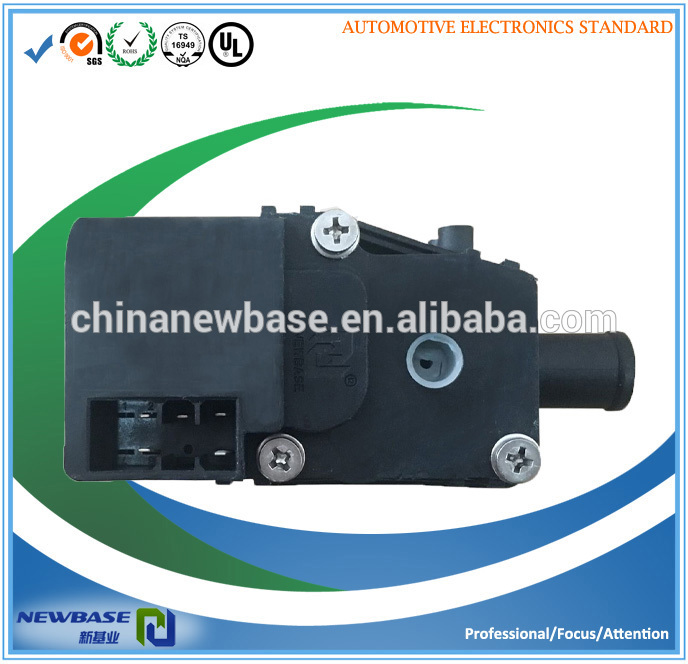

Detailed Images
The inner diameter of hose is 13mm
Outer diameter of the hose is 17mm.
Connector definition
The bulit-in connector is suitable for 7-port or 5-port counter connector, you could choose as per your actual demand.
The pins definition squence can be modified as per your requirement.
We could provide the 5-wire TEMP water valve with connector type or wiring lead type, you could choose as per your demand.
For wire lead type, the connector model and wire length can be modified as per your actual application.
Assembly
Install the water valve horizontally or vertically, don't keep the motor actutor under valve body in case of any water leakage.
Other Products
Components
NEWBASE water valve is combined with the motor actuator and the valve body.
NEWBASE actuators include 2-wire type, 3-wire type, 5-wire type, 7-wire type or voltage control type , you could choose the suitable model as per your demand.
We could also give recommendation as per your application.
Packing & Delivery
|
Item
|
Packing material
|
QTY/CTN
|
|
Carton
|
5 layers Corrugated paper
|
1
|
|
Box
|
3 layers Corrugated paper
|
25
|
|
Valves
|
bubble pack
|
75
|
|
N.W.
|
|
15kgs
|
|
G.W.
|
|
16kgs
|
By sea
By air
By express
Our Company
Zhengzhou Newbase Auto Electronics Co., Ltd. was established in 1991. For over 20 years, NEWBASE has developed advanced technology strength, strong production capacity and talents of technology development team. Adhering to the company philosophy - Focus, Attention, Professional, NEWBASE devote to leading the vehicle climate control industry. We have made fabulous contribution to the climate control technology development domestic and abroad, while getting high approval from HVAC manufacturer and related enterprises. NEWBASE would be keep going to offer more advance technology and excellent product.
Main purport: Supply the excellent Vehicle environment control product and advance technology.
NEWBASE factory is located in the west of Zhengzhou High&New Technology Development Zone, with two manufacturing workshops, R&D laboratory , Test laboratory.
NEWBASE technical team has more than 20 experienced engineers , who are ready to provide professional technology support as per your demand.
The sales team is good at fast response on customers any requirement . No matter pre-sales service or after-sale service, we will try our best to serve every customer sincerely.
The big warehouse can store enough raw material for earliest production, for regular order, we can also get enough finished products for urgent delivery.
Semi-Automatic Production Line
Warehouse management
Our partners
Adhering to the company philosophy - Focus, Attention, Professional, NEWBASE has bulit long-term cooperation with many famous enterprise.
Application AC system: Thermo king; SAFKAR; Konvekta; Denso; New Tongchuang(NTCAC); Kingtech; Taichang(OPAT); Bergstrom; BEHR; SANDEN;SONGZI;
Application Vehicule: YUTONG BUS; KINGLONG BUS; SANY; FOTON; HIGER; ZHONGTONG PASSENGER CAR; KOBELCO; TATA; Mahidra.
Our Service
Fast delivery and service
NEWBASE set the branch office or sales agent around the world. Our engineer would offer you professional technology support. According to the specification of AC system, our technicist would help you with model-selection or design suggestion. It helps you to get the most suitable product.
AE technology support
NEWBASE technology support engineers help you install and test the system. With adequate knowledge and experience in HVAC system, they could help you with kinds of question about AC system.
After sales service
NEWBASE offer super technical support for after sales.
All the after sales technical people are required to take regular technical training. They are knowledgeable enough to release you from the after-sales trouble.
