Product Attribute:
Place of Origin:Henan China (Mainland)
Brand Name:Newbase
Model Number:CG220209-a
Size:132*62*54mm
Type:control unit
Car Make:Truck,construction vehicle
OE NO.:OEM

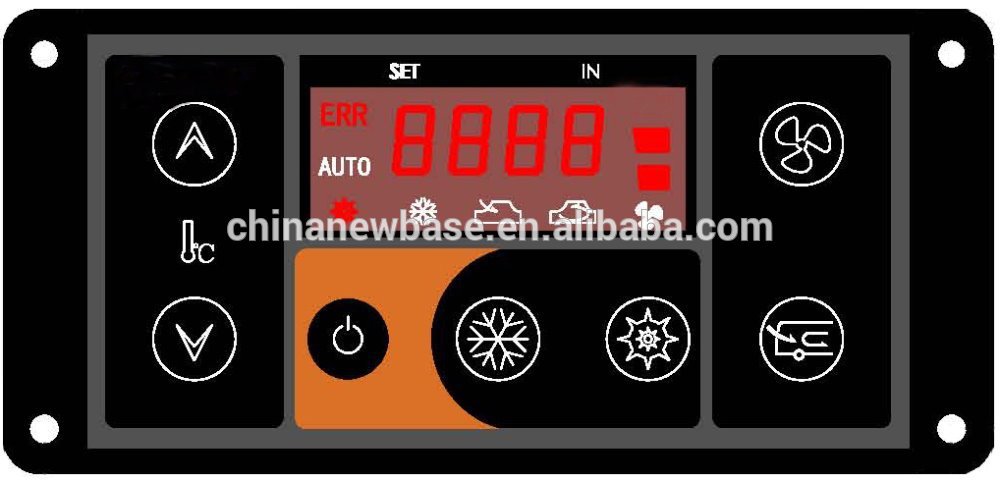

Item name:CG220207-b truck & construction vehicule ac control panel
Brand Name:Newbase
System:Cold&Warm,fresh air
Power supply:12V/24V
Current:max. 300mA
Production Description:
CG220207-b truck & construction vehicule ac control panel apply to internal climate control of construction vehicle and truck.
1.Main functions:
cooling,heating, ventilation,fresh air,Power lost memory, error alarm, voltage auto-protection, evaporate fan 3-grade adjustment, Interior temp display.
2.Shift functions:
1). Mandatory cooling
2). Defrost temp. display(press fresh air button no less than 3s)
3.Application case:
FOTON; YUXIN Automotive Air Conditioner; LIUGONG Machinery; KOBELCO
4.Techincal data:
Power supply | DC12V/24V |
Power consumption | 2 W |
Current | Max.200mA |
Dimensions | 132X62X54mm |
Input | 1) Interior temp. sensor 2) Defrost sensor 3) Pressure sensor 4) A/C power(generator) 5) ACC(battery) 6) Backlight power |
Output | 1) Fan high 2) Fan medium 3) Fan low 4) Compressor clutch 5) Heating 6)Fresh air on 7) Fresh air off |
Display | LED |
Ambient temperature | -30鈩?mdash;80鈩?/span> 5%-95%RH Non-condensing |
Storage temperature | -10鈩?mdash;70鈩?/span> 5%-95%RH Non-condensing |
Display precision | Temp value. Dual digit display, Accuracy,1 °c |
Protection | IP43 |
EMC | EN50081&EN50082-2 |
Security level | Applied to EN61010-II, Pollution degree: II |
Weight | 185g |
5.Dimensios
