Product Attribute:
Place of Origin:Henan China (Mainland)
Brand Name:NEWBASE
Model Number:TEMP
Size:84X50X28(mm)
Type:servo motor
Car Make:bus, truck, car,etc
application:HVAC ventilation
Production Description:

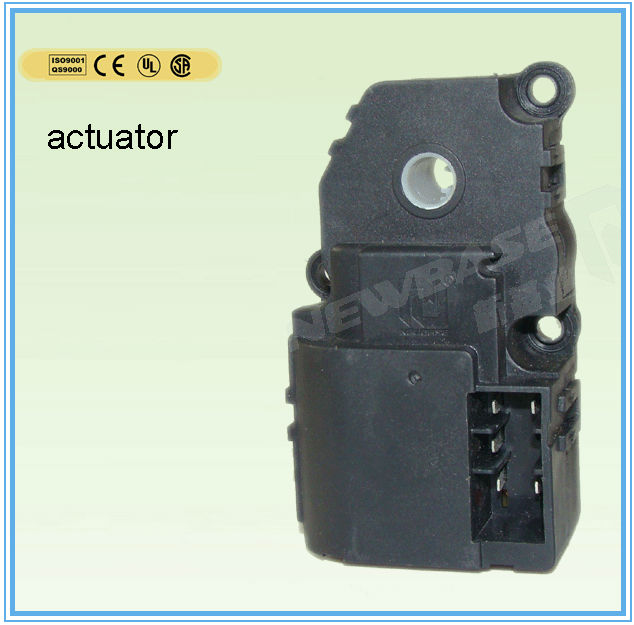

Vehicle hvac electrical fresh air damper actuator , air damper valve actuator
DV12/DC24V TEMP / FRESH AIR DAMPER ACTUATOR (Feedback)
Fresh air damper actuator (feedback) applies to control the temp and air damper of the car and special vehicle.
Continuously adjust the temp by switching polarity of actuator wiring, at the same time, the actuator will send the ventilation door position signal back to system.
Application case:
WINIA MANDO, HYUNDAI , SSMC, DAIHAN, DENSO, IVECO.
Technical date
Code | NB201016 |
Power supply | DC12V(DC8V-DC16V)/DV24V(DC16V-DC30V) |
Power consumption | 3W |
Current | Max.70mA |
Electrical connection | Max.1m X 0.5mm² |
Direction of rotation | CW/CCW |
Angle of rotation | 54°+2°(adjustable, max 300°) |
Torque | 4kgf.cm |
Running time | 3.5+0.5rpm |
Locked torque | 12kgf.cm |
Locked current | Max.250mA |
Noise level | Max.42dB(A) |
Ambient temperature | -30°c—80°c |
Storage temperature | -40°c—85°c |
Life | Max.500,000 cycle |
Dimensions | 84X50X28(mm) |
Weight | 94g |
Quality certification | TS16949/ISO9001 |
