Product Attribute:
Place of Origin:Henan China (Mainland)
Brand Name:newbase
Model Number:CK200209
Size:59X47X46mm
Type:control unit
Car Make:bus,car,truck
Display:2 segment
weight:150g
Faceplate level:IP43
Production Description:

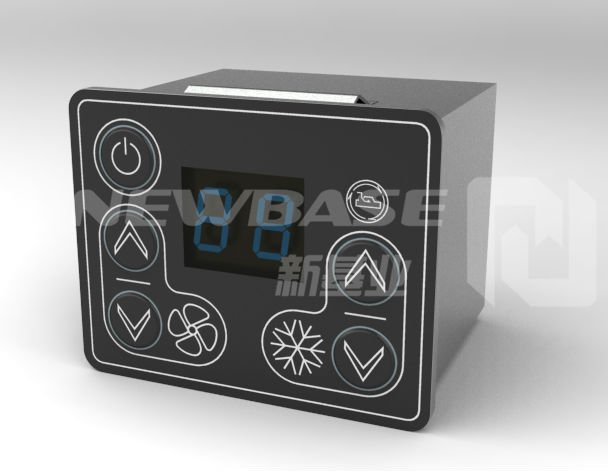

CK200209 Bus Climate Controller, bus ac control pnael, temperature control system
OEM or customized is welcome.
CK200209 air conditioner micro-controller applies to internal climate control for bus and truck.
Main function:cool, fresh air, error alarm,3-grade air-flow adjustment,hold cooling. shift function;
The shift function
1) Defrost temp. display (press fan+ button for no less than 3S)
2) Hold cooling (press fan- button for no less than 3S)
Application
KINGTECH, LIUGONG Machinery
Technical data
Power supply | 12V/24V(DC10V-DC15V)(DC20V-DC30V) |
Power consumption | 2.5W |
Current | Max.150mA |
Dimensions | 59X47X46mm |
Input | 1) Interior temp. sensor 1 (25°C,Rb=5K,B=3274) 2) Defrost sensor (25°C ,Rb=5K,B=3274) 3) Pressure sensor 4) ACC(battery) 5) Backlight power |
Output | 1) Fan high (max. 0.2A) 2) Fan medium (max. 0.2A) 3) Fan low (max. 0.2A) 4) Fresh air on (max. 0.2A) 5) Compressor clutch(max. 0.2A) |
Display | LED |
Ambient temperature | -30°C—80°C 5%-95%RH Non-condensing |
Storage temperature | -10°C—70°C 5%-95%RH Non-condensing |
Display precision | ±1°C |
Temperature test standard | Temp. control based on the temp. of return air inlet, the defrost sensor controls defrost temp, defrost on at 2°C, defrost off at 4°C |
Connector | Plug M4257-2*7 |
Faceplate level | IP43 |
EMC level | EN50081&EN50082-2 |
Security level | Applied to EN61010-II, Pollution degree: II |
Weight | 110g |
