Product Attribute:
Place of Origin:Henan China (Mainland)
Brand Name:Newbase
Model Number:CG220209-a
Size:132X62X54mm
Type:control system
Car Make:Construction Vehicle,truck
Display:LED
Application case:FOTON,YUXIN Automotive Air Conditioner
weight:170g
Faceplate level:IP43
Production Description:

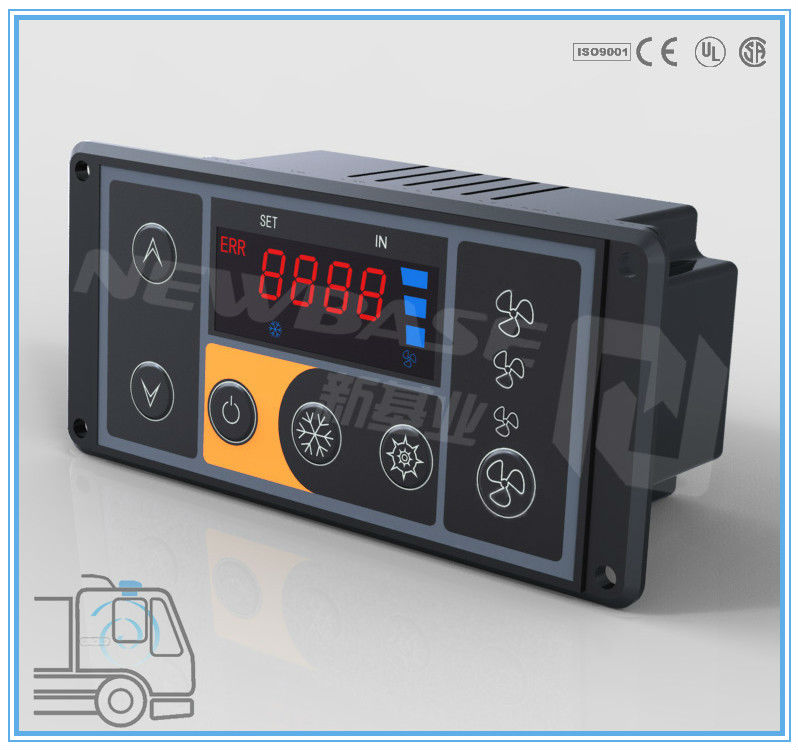

CG220209 construction vehicle & truck air conditioning control panel (LED)
Function
CG220209 digital air conditioner controller applies to internal climate control for construction vehicle.
Main functions:cooling, heating, memory, error alarm, Auto over-voltage protection, evaporator fan 3-grade adjustment, shift function
The shift function
1) Defrost temp display (press heating button for no less than 3S)
2) Compel cooling (press cooling button for no less than 3S)
Application
FOTON,YUXIN Automotive Air Conditioner
Technical date
Power supply | 12V/24V(DC8V-DC16V)(DC20V-DC32V) |
Power consumption | 2W |
Current | Max.200mA |
Dimensions | 132X62X54mm |
Input | 1) Interior temp. sensor 1 (25°C,Rb=5K,B=3274) 2) Defrost sensor (25°C ,Rb=5K,B=3274) 3) A/C power(generator) 4) ACC(battery) 5) Backlight power |
Output | 1) Evaporator fan output( high, medium, low) 2) Compressor clutch(max. 0.3A) 3) Heater tap valve(max. 0.3A) |
Display | LED |
Ambient temperature | -30°C—80°C 5%--95%RH Non-condensing |
Storage temperature | -10°C—70°C 5%--95%RH Non-condensing |
Display precision | ±1°C |
Temperature test standard | Temp. control based on the temp. of return air inlet |
Connector | Plug DJ7171-3-10 |
Faceplate level | IP43 |
EMC level | EN50081&EN50082-2 |
Security level | Applied to EN61010-II, Pollution degree: II |
Weight | 170g |
