Product Attribute:
Place of Origin:Henan China (Mainland)
Brand Name:NEWBASE
Model Number:CK20118212
Size:150*60*44
Type:bus air condition controller
Car Make:bus,truck
Power supply:DC24V/DC12V
Power:3w
Display:LED
Protection:IP54
EMC:EN50081&EN50082-2
Certificate:CE,UL,ISO9001
Production Description:

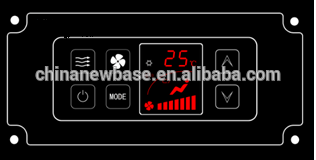

Electrical bus air condition controller cabinet climate control is applies to bus internal climate controller.
1.Detailed Product Description:
Technical data | CK20118212 |
Power supply | 24 (DC20V-DC32V) |
Power consumption | 3w |
Current | Max.200mA |
Dimensions(mm) | 150x60x44 |
Input | 1)Return air inlet temperature sensor (25鈩?Rb=5K,B=3274) 2)Defrost temp. sensor (25鈩?Rb=5K,B=3274) 3)Pressure switch(switch off is fault, Negative is normal) 4)ACC power(Backlight power,voltage detection )
|
Output | 1)Fan speed low control 2) Fan speed medium control 3) Fan speed high control 4) Compressor control 5) Fresh air control
|
Display | LED(red) |
Ambient temperature | -30°c—80°c 5%-95%RH Non-condensing |
Storage temperature | -10°c—70°c 5%-95%RH Non-condensing |
Display precision | Set temp. for dual digit display, accuracy 1 °c; Interior & Exterior temp. for dual digit display, accuracy 1 °c; |
Temperature test standard | Temp. control based on the temp. of return air inlet, the defrost sensor controls defrost temp., defrost on at 2 °c ,defrost off at 7°c |
Faceplate level | IP54 |
EMC level | EN50081&EN50082-2 |
Security level | Applied to EN61010-II,Pollution degree :II |
Weight: | 400g |
2.Main functions:
CK20118212 controller is applied to the bus air conditioning interior climate control, it ould realize the full-automatically control,cooling,fresh air,power-lost memory,error alarm,interior temp.display,defroster temp. query etc.
The shift function
Mode button: Press this button for more than 3s,the controller would give out three warning tone. ,the setting temp. will display 88,and the system enter into mandatory cooling state;press the button except for the fan volume button to relieve the mandatory cooling state.
- Temp.+ button:press for more than 3s,the controller would give out three warning tone. ,the setting temp. Display air inlet temp.,the system return to the original working state for more than 3s.
Temp. - button: press for more than 3s,after the controller would give out three warning tone,the setting temp. Display defrost temp.,the system return to the original working state after 3s.
3.Drawing dimension:
5.Our partners:
6.Company factory:
Zhengzhou Newbase Auto Electronics Co.,Ltd is established in 1991.For over 20years,NEWBASE has developed advanced technology strength, strong products capacity and talents of technology development team. Adhering to the company philosophy Focus, Attention, Professional, Newbase devote to leading the vehicle climate control industry. We have made fabulous contribution to the climate control technology development domestic and abroad, while getting high approval from HVAC manufacturer and related enterprises.
Newbase would be keeping going to offer more advance technology and excellent product. We offer kinds of bus air conditioning control panel for your flexible choice. Most items are all popular and universal mounting for your buses air conditioner. Just let us know your special demands, we will give you all the information as soon as possible.
