Kt Kingtronics Typical Ceramic Dielectric Materials For MLCC

Product Attribute:

Applicationt:

Geely, HAMA, Huandai, Jinbei

Production Description:

Typical ceramic dielectric materials for MLCCs with several EIA specifications.
EIA designation	Class	Temp range ( )	Temp.cap. change (%)	K value up to	BT content (%)	Grain  size (μm)
NPO(C0G)	1	-55 to 125	±30 ppm	100	10-50	1
X7R(BX)	2	-55 to 125	±15	4000	90-98	1.5
Z5U	2	10 to 85	+22, -56	14000	80-90	3-10
Y5V	2	-30 to 85	+22, -82	18000	80-90	3-10

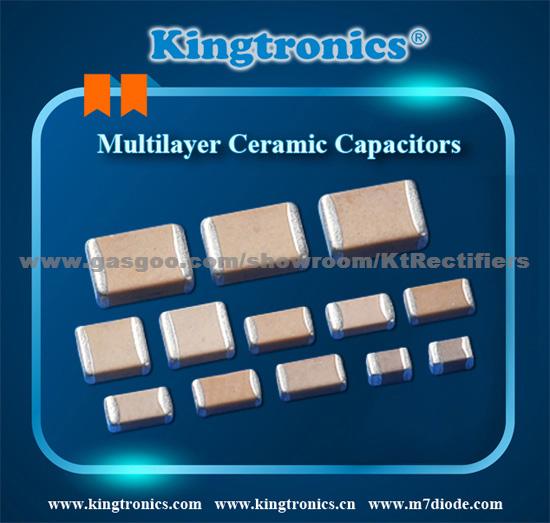

Kingtronics produce multilayer ceramic capacitors (MLCC), include through-hole ceramic capacitors and surface mount ceramic capacitors (chip type). Through hole capacitors (leaded capacitors) include AKT-axail multilayer ceramic capacitors and MKT-radial multilayer ceramic capacitors. For SMD multilayer ceramic capacitors, we produce two series, LKT- low voltage chip multilayer ceramic capacitors and HKT- high voltage chip multilayer ceramic capacitors.

Operating Temperature ( )	NPO(COG)	X7R	Y5V
AKT	-55 to 125	-55 to 125	-30 to 85
MKT	-55 to 125	-55 to 125	-30 to 85
LKT	-55 to 125	-55 to 125	-30 to 85
HKT	-55 to 125	-55 to 125	-
