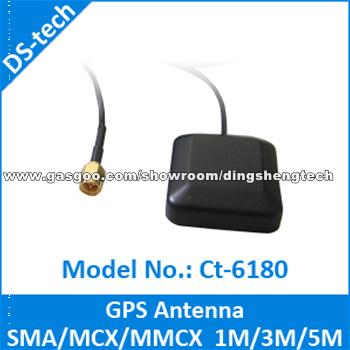

Ct-6180 GPS Antenna Car Antenna GPS Active Antenna

Ct-6180 GPS Antenna Car Antenna GPS Active Antenna

Application:  DS-tech

OEM No/Model:  Ct-6180

Market Type:  After Market

Packing:  100pcs/Box

Samples:  Charge

Place of origin:  Taiwan

Product Attribute:

Applicationt:

DS-tech

Production Description:

This antenna system consists of two functional blocks, the LNA portion and the patch antenna.


GENERAL
ENVIRONMENTAL CONDITIONS
Operation Temperature -30 to + 80
Storage Temperature -40 to + 100
Relative Humidity 40% to 95%
ELECTRICAL SPECIFICATIONS
Operation Voltage Min:2.5V    Typ: 3.0V    Max:5.5V
Current Consumption Typ: 11mA  Max: 15mA  @3.0V
ANTENNA
Frequency Range 1575.42 ± 1.023 MHz.
Bandwidth 15 MHz min. ( Return loss 10 dB )
GAIN at Zenith : + 5.0 dBi Typ.
at 10° Elevation: -1.0 dBi Typ .
       Mounted on the 70mm*70mm ground plane.
Polaration RHCP
Axialration 3.0dB Max
       Mounted on the 70mm*70mm ground plane.
 LNA
Frequency Range 1575.42 ± 1.023 MHz
Gain 28dB Min. 30dB Typ. ( + 25 ± 5)
Noise Figure 1.6 dB Max. ( + 25 ± 5) @ 3.0V
Output Impedance 50
TOTAL SPECIFICATIONS (Through Antenna, LNA, Cable and Connector)
RF Cable RG174 , 2.7 ± 0.2mm , Black
Cable Length : 5M ± 5cm
RF Connector SMA 180°(M)
Frequency Range 1575.42 ± 1.023 MHz
Gain at Zenith : Typ 35 dBi (cable loss) Note:1
       mounted on the the 70mm*70m ground plane
Output Impedance 50
Output VSWR 2.0 Max
