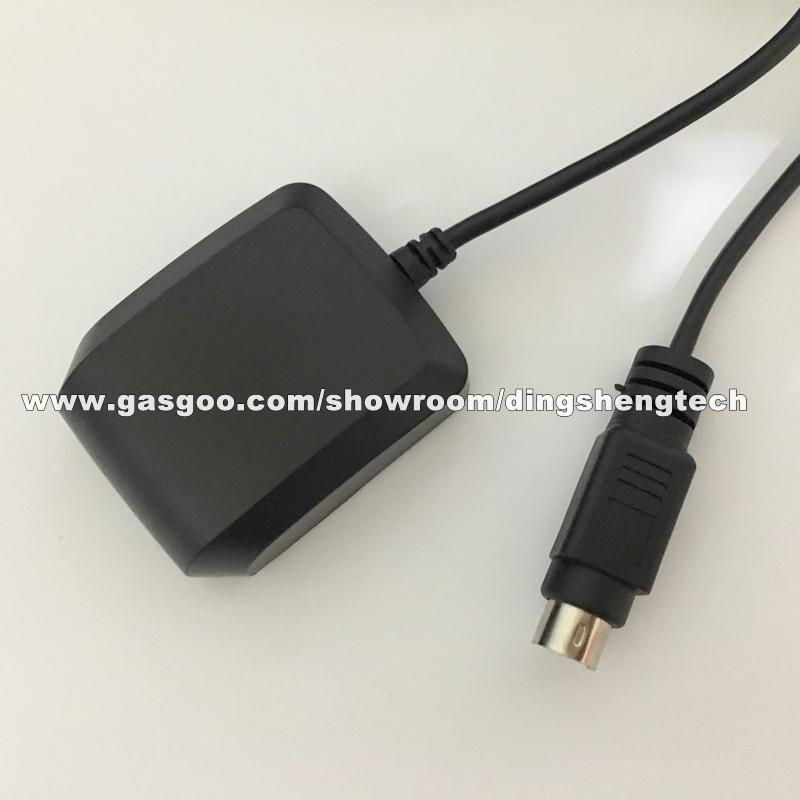

U7 GPS Mouse Ct-GM451 TTL GPS Receiver PS2 Connector

U7 GPS Mouse Ct-GM451 TTL GPS Receiver PS2 Connector

Application:  DS-tech

Market Type:  After Market

Samples:  Charge

Product Attribute:

Applicationt:

DS-tech

Production Description:

DS-GM451 U7 is a compact, high performance, and low power consumption G-Mouse.
It uses the chipset which can track up to 56 channels at a time and perform fast TTFF in weak signal environments.
Ct-GM451 U7 is suitable for the following applications:
* Automotive navigation
* Personal positioning
* Fleet management
* Marine navigation

Product Features
* High performance and low power consumption GNSS Chipset
* Very high sensitivity
* Extremely fast TTFF (Time To First Fix) at low signal level
* Two serial ports
* Support NMEA 0183 and ublox binary protocol

Specifications

General
Frequency L1 frequency band
Code C/A
Protocol NMEA 0183 v4.1GALILEO L1 open service (with upgrade)Default:GGA,GSA,GSV,RMCSupport:VTG,GLL,TXT ublox binary and NMEA Command
Available Baud Rate 9,600 bps
Channels 56
Sensitivity Tracking:-161dBmReacquisition:-160dBmCold Start:-147dBm
Cold Start 29 seconds, average
Warm Start 28 seconds, average
Hot Start 1 second, average
Accuracy HorizontalPosition:Autonomous<2.5maverage,SBAS < 2.0m averageVelocity: 0.1 m/sTimepulse signal: RMS 30 ns
Maximum Altitude 50,000 meter
Maximum Velocity 15 m/s(1000 knots)
Dynamics <= 4G
Update Rate 4 Hz
A-GPS AssistNow on-line and off-line
Physical Characteristic
Dimensions 49.7mm * 39.5 mm * 19.5mm
Environmental Range
Humidity Range 5% to 95% non-condensing
Operation Temperature -30 to 75
Storage Temperature -40 to 85
  GLONASS Performance

GLONASS Performance
Frequency L1 frequency band

Protocol		 GALILEO L1 open service (with upgrade)Default:GGA,GSA,GSV,RMCSupport:TTG,GLL,TXT binary and NMEA Command
Available Baud Rate 9,600 bps
Channels 56

Sensitivity		 Tracking:-158dBmReacquisition:-156dBmColdStart:-139dBm
Cold Start 32 seconds, average
Warm Start 25 seconds, average
Hot Start 1 second, average

Accuracy		 HorizontalPosition:Autonomous<4.0m average,Velocity: 0.1 m/sTimepulse signal: RMS 50 ns
Maximum Altitude 50,000 meter
Maximum Velocity 500 m/s(1000 knots)
Dynamics <= 4G
Update Rate 1 Hz
Interface
I/O Pins 1 serial ports
Physical Characteristic
Dimensions 49.7mm * 39.5 mm * 19.5mm
Environmental Range
Humidity Range 5% to 95% non-condensing
Operation Temperature -30 to 70
Storage Temperature -40 to 80

U7 GPS Mouse Ct-GM451 TTL GPS Receiver PS2 Connector
