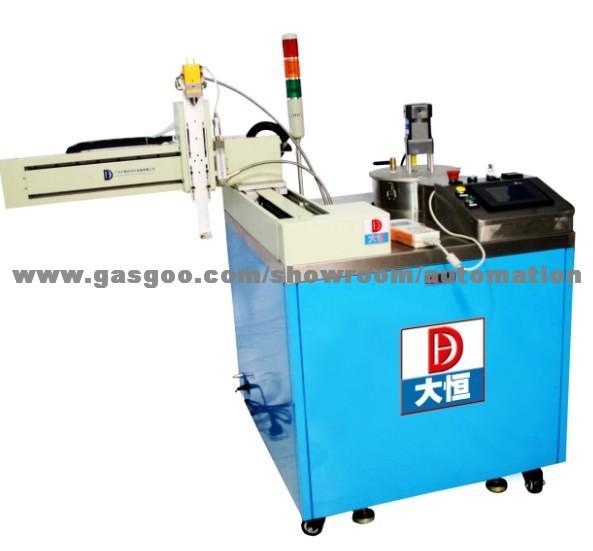

Cantilever Type Automatic Pouring Machine

Cantilever Type Automatic Pouring Machine

Application:  LED Display, Soft (Hard ...

OEM No/Model:  PGB-200T

Market Type:  After Market

Packing:  Wood

Samples:  Not Available

Maximum Prodcution Capacity:  50 Sets/Month

Delivery Time:  1 Month

Place of origin:  China

Export Ratio:  11% - 20%

Price Terms:  FOB

Delivery Port:  Guangzhou

Payment Terms:  T/T

Minimum Order:  1Set/Sets

Product Attribute:

Voltage:12v

Power:18w

Type:H2

Current:18A

Applicationt:

LED Display, Soft (Hard Light Strip, Power Supply, Relay, Semiconductor, Connector, Ballast, Auto, Switch, Transformer, Resistor, Capacitor, Battery, Inductance, PCB, SMT, LCD, Ignition Coil, CPU cooler, Optical Lens, Computer, Loudspeaker, Air Purifier, Electronic Scale, Medical Apparatus, Artware & Gift, Cutting Tool, Crystal Album)

Production Description:

Machine travel: 480 x 480 x 60mm, also can customize as customer requires.
Matching proportion: 1:1, 10:1 and other fixed proportion.
Mixing method: static mixing, also can choose dynamic mixing
Supplying way: high precision gear pump (also can choose other supplying way)
Motion trail: point, straight line, arc, frame and various irregular motion track
Out-gluing quantity: 10-60g/5s, except special type
Moving speed: 0-300mm/s
Position precision: ±0.02mm
Overall size:1000(L) x 1000(W) x 1500(H)mm
Weight: about 350 kg
2, Main feature:
A, adopt cantilever structure, can match production line or other working table, convenient and flexible, practical and unmanned control.
B, teaching program
C, can add functions as customers require.
