Product Attribute:
Voltage:12v
Power:18w
Type:H2
Current:18A
Applicationt:
LED Display, Soft (Hard Light Strip, Power Supply, Relay, Semiconductor, Connector, Ballast, Auto, Switch, Transformer, Resistor, Capacitor, Battery, Inductance, PCB, SMT, LCD, Ignition Coil, CPU cooler, Optical Lens, Computer, Loudspeaker, Air Purifier, Electronic Scale, Medical Apparatus, Artware & Gift, Cutting Tool, Crystal Album)

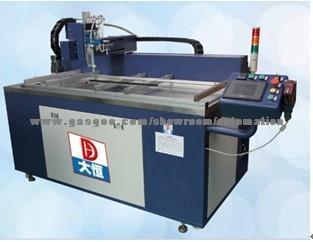

Production Description:
Machine travel: 1500 x 480 x 20mm, can customize as customer require.
Matching proportion: 1:1, 10:1, and other fixed proportion.
Mixing way: static mixing, and also can choose dynamic mixing
Supplying way: high-precision gear pump(can choose piston pump if special required)
Motion trail: point, straight line, frame, pulse signal and irregular track.
Dispensing quantity:10-60g/5s, except special type
Motion speed: 0-300mm/s
Motion precision:±0.02mm
Matching precision: ±1%
Dispensing precision: ±1%
Capacity of container: Container A 30L, container B 10L, can customize as customers required.
Working voltage: AC220V 50-60HZ
Working air pressure: 0.5-0.7Mpa
Overall size: 1900(L) x 1400(W) x 1500(H)
Weight: about 500 kg
2, Industry and Glue Application:
Industry: display, advertising model group, hard light strip, clear wall light, line lamp, LED products and electronics
Glue: silica gel, epoxy, PU, and double compositions for PU need
3, Optional Function:
A, evacuation
B, heating function
C, change other pump of supplying glue
D, add motion board and made moving diversification
4,Main feature
A, matching accuracy, mixing and pouring all in one, complete the real full automation
B, well-proportioned mix, avoid waste by manual operation
C, position accuracy, fast speed, convenient adjusting
D, good generality, display, advertising model group, hard light strip, clear wall light, only need to wash when change glue.
E, easy programming, easy operation and anyone can operate
F, Tally function, non-standard mode, primer mode, level alert, filter mode, flow display device, preventing backflow device and other functional device. It can be added other function if customer requires.
5,Benefit for Enterprises:
A, improve quality of products: accurate proportion, uniform mixing, same pouring quantity. It can increase quality of products.
B, save labour cost: increase speed and can save labour costs.
C, save glue: no wasting because it has accurate pouring quantity.
D, to beautify workshop environment, easily manage 6S of factory
E, to solve the difficulty of managing workers, looking for workers, the high cost of workers, not flexible in off season.
F, improve competition ability
G, saved factory space.
