Product Attribute:
Voltage:12v
Power:18w
Type:H2
Current:18A
Applicationt:
LED Display, Soft (Hard Light Strip, Power Supply, Relay, Semiconductor, Connector, Ballast, Auto, Switch, Transformer, Resistor, Capacitor, Battery, Inductance, PCB, SMT, LCD, Ignition Coil, CPU cooler, Optical Lens, Computer, Loudspeaker, Air Purifier, Electronic Scale, Medical Apparatus, Artware & Gift, Cutting Tool, Crystal Album)

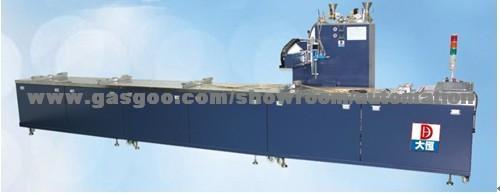

Production Description:
Machine operating distance: 5000x400x20 mm (can customize as customer require)
Glue mixing proportion: 1:1, 10:1 and other fixed proportion.
Mixing method: dynamic mixing
Glue supplying way: High precision gear pump (except special requirement)
Moving trail: can move in a straight line, frame, pulse signal and other moving track
Glue pouring speed: signal-head 200-300m/hour, special model speed will be faster.
Moving speed:0-180mm/s
Position accuracy: ±0.03mm
Matching accuracy: ±1%
Dispensing Precision: ±1%
Capacity of container: A 15L, B 15L
Working voltage: AC220V50-60Hz
Working pressure: 0.5-0.7MPa
Overall dimension: L6000mm x W1200mm x H1500mm
Machine weight: about 1600Kg
2, Main Feature:
A, Automatic vacuum rubberizing, vacuum defoaming, simple and convenient
B, matching accuracy, mixing and pouring all in one, complete the real full automation
C, well-proportioned dynamic mixing
D, position accuracy, fast speed, convenient adjustment
E, level alert, filtrating equipment, heating equipment
F, easy programming, easy operation and anyone can operate
