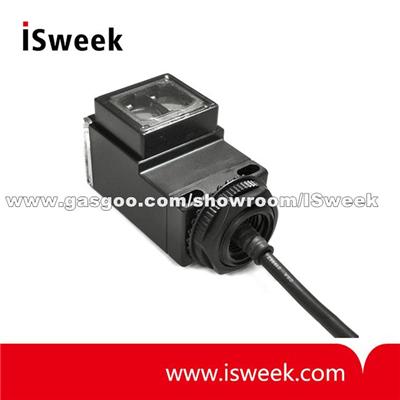

RP74 Series Multi-purpose Photoelectric Sensor Description
Built-in Timer Modes
Several Mounting Options
Universal Power Supply
Long Range
Modes | Ranges |
Through Beam | 61m |
Retroreflective | 9.14m |
Diffuse | 3.04m |
Clear Object Detection | 1.2m |
Fiber Optic Mode - (range depends on fiber used) |
RP74 Series Multi-purpose Photoelectric Sensor
Through-beam | Diffuse | Retroreflective (Polarized) | Fiber Optic | Clear Object Detection | |
Operating Range | 61m (200 ft.) | 3.04m (10 ft.) | 9.14m (30 ft.) | Depends on fiber | 1.20m (3.9 ft.) |
Light Emission | 880nm Infrared LED | 880nm Red LED | 660nm Red LED | 880nm Infrared LED | 660nm Red LED |
DC Models (10-40 VDC) M12 - Recommended Mating Cable: part # R-FS4TZ-V075 (straight), R-FA4TZ-V075 (right-angle) | |||||
Emitter | RP74-T061MD-EY9Q4LE | ||||
NPN / PNP - with timing |
RP74-T061MD- CY9Q4UE-T | RP74-D3040D- CY9Q4UE-T |
RP74-L9140D- CY6Q4UE-T |
RP74-FGFD- CY9Q4UE-T |
RP74-S1200D- CY6Q4UE-T |
AC Models (12-240 VDC/24-240 VAC) ½"-20 UNF - Recommended Mating Cable: part # U-FS5TA-V105 (straight), U-FA5TA-V105 (right-angle) | |||||
Emitte | RP74-T061MA-EY9Q4LM | ||||
SPDT Relay |
RP74-T061MR- CY9Q5LM-T |
RP74-D3040R- CY9Q5LM-T |
RP74-L9140R- CY6Q5LM-T |
RP74-FGFR- CY9Q5LM-T |
RP74-S1200R- CY6Q5LM-T |
Technical Data | |||||
Power Supply | 10-40 VDC or 12-240VDC/24-240 VAC | ||||
Indicator LEDs | Green: Power, Yellow: Output, Red: Margin | ||||
Current Consumption | 30mA max. | ||||
Saturation Voltage | 2.5 V max. | ||||
Output Current | 30mA max. | ||||
Response Time | NPN/PNP: 5ms, SPDT Relay: 23ms | ||||
Timing Options | No Delay, On Delay, Off Delay, One-shot (for Models With Timing Delay). | ||||
Time Settings | Adjustable, 0.1...15s (for Models with Timing Delay) | ||||
Mechanical Protection | IP67 | ||||
Housing Material | Glass Fiber Reinforced Plastic, Cover Gasket Material: Neoprene | ||||
Lens Materia | Acrylic | ||||
Operating Temp. | 25...+55°C (-13...+131°F) | ||||
Storage Temp. | -40...+55°C (-40...+131°F) | ||||
Reference Standard | EN 60947-5-2 |
