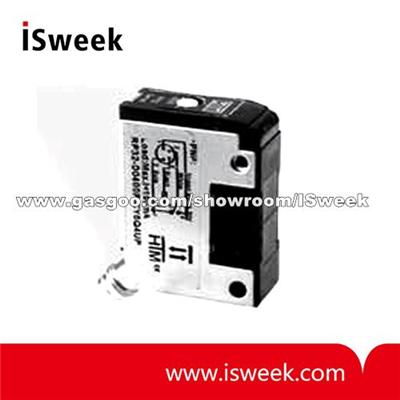

RP32 Series Miniature Photoelectric Sensor Description
Compact & Rugged Design
Stainless Steel and Glass Fiber Reinforced Plastic Housing
Shock & Vibration Resistant
Modes | Ranges |
Through Beam | 8.5m |
Retroreflective | 4m |
Diffuse | 400mm |
Clear Object Detection | 500mm |
Through-beam | Diffuse | Retroreflective | Clear Object Detection | |
Part Numbers | ||||
Emitter |
RP32-T8500D- EY6Q4LP |
|||
NPN |
RP32-T8500N- CY6Q4UP |
RP43-D0400N- CY6Q4UP |
RP32-L4000N- CY6Q4UP-PF |
RP32-L0500N- CY6Q4UP-PD |
PNP |
RP32-T8500P- CY6Q4UP |
RP43-D0400P- CY6Q4UP |
RP32-L4000P- CY6Q4UP-PF |
RP32-L0500P- CY6Q4UP-PD |
Technical Data | ||||
Operating Range | 8.5m (27.8 ft.) | 400mm (15.7 in.) | 4m (13 ft.) | 0.5m (19 in.) |
Power Supply | 10 - 30 VDC | |||
Current Consumption | 35mA max. | |||
Ripple | ±10% (within Vs tolerance) | |||
Light Emission | 660nm Infrared LED | |||
Angle of Divergence | approx. 3.5° | approx. 5.0° | approx. 4.5° | |
Light Spot Size | approx. 440mm@7m | 40mm@400mm | approx. 200mm@2.5m | |
Setting | sensitivity trimmer | |||
Output Voltage | High: PNP: Vs - (1.5V); NPN is approx. Vs; Low: PNP is approx. 0V; NPN is 1.5V | |||
Output Current Max. | 100mA max., short-circuit protected and over current protected, Vs reverse polarity protected | |||
Response Time | <15 ms | <2 ms | <0.7 ms | |
Switching Frequency | 33 Hz | 250 Hz | 700 Hz | |
Connection |
M8 4 pin connector - Recommended Mating Cable: Part # C-FS4TZ-V075 (straight), or C-FA4TZ-V075 (right-angle) |
|||
Mechanical Protection | IP67 / NEMA 6 | |||
Housing Material | Stainless Steel / Glass fiber reinforced plastic | |||
Operating Temp. | -25 ~ +55°C (-13 ~ +131°F) | |||
Storage Temp. | -40 ~ +70°C (-40 ~ +158°F) | |||
Reference Standard | EN 60947-5-2 |
