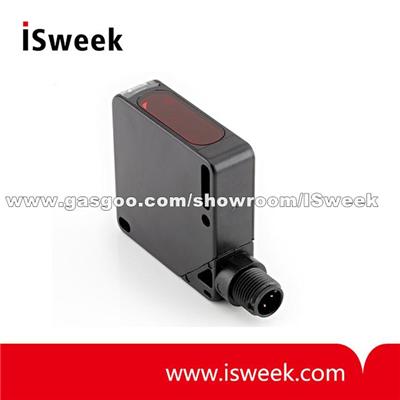

Image for Advanced Performance Photoelectric Sensor

Advanced Performance Photoelectric Sensor

Application: \
Market Type:After Market
Price: Inquiry For It?

Contact Supplier no sign-up required

Add to Favorites

Product Details

Company Profile

Quick Details

OE Experience:
No

Product Name:Advanced Performance Photoelectric Sensor

Advanced Performance Photoelectric Sensor

Application

\

Product Description:

H60 Series Advanced Performance Photoelectric Sensor Description
Standard 50 x 50mm Housing
Rotatable M12 Connector
High Quality
Many Operating Modes Available

Modes	Ranges
Through Beam	0 ~ 20m
Retroreflective	0.1 ~ 20m
Diffuse	5 ~ 2000mm
Background Suppression	7 ~ 200mm
Contrast	19mm
Distance	50 ~ 150mm

H60 Series Advanced Performance Photoelectric Sensor Ordering Information

Mode	Through-beam (30m range)	Diffuse	Laser Diffuse	Polarized Retroreflective
Operating Range	0...20m (65.6 ft.)	0.005...2m (6.56 ft.)	0...0.6m (1.97 ft.)	0.1...8m (26.2 in.)
Light Emission	Infrared LED, 880nm	Red LED, 880nm	Red Laser, 650nm	Red LED, 600nm
Part Numbers
Emitter	H60-THRU-E-PO-4Q
NPN	H60-THRU-R-NO-4Q	H60-DIF-NO-4Q	H60-LASER-D-NO-4Q	H60-RETRO-NO-4Q
PNP	H60-THRU-R-PO-4Q	H60-DIF-PO-4Q	H60-LASER-D-PO-4Q	H60-RETRO-PO-4Q

Mode	Laser Retroreflective	Background Suppression	Contrast	Distance
Operating Range	0.1...20m (65.6 ft.)	0.007...0.2m (7.87 in.)	19mm (0.75 in.)	50...150mm (5.9 in.)
Light Emission	Red Laser, 650nm	Red LED, 670nm	White LED, 400-700nm	Red LED, 670nm
Part Numbers
NPN	H60-LASER-R-NO-4Q	H60-BGS-NO-4Q	H60-CONTRAST-NO-4Q	H60-DISTANCE-NO-4Q
PNP	H60-LASER-R-PO-4Q	H60-BGS-PO-4Q	H60-CONTRAST-PO-4Q	H60-DISTANCE-PO-4Q

H60 Series Advanced Performance Photoelectric Sensor Technical Data

	Throughbeam	Diffuse		Retroreflective		BGS	Contrast	Distance
	Throughbeam	Standard	Laser	Polarized	Laser	BGS	Contrast	Distance
Power Supply:	10...30 VDC							18...30 VDC
Ripple:	2 Vpp
Current Consumption:	35 mA	40 mA	35 mA	40 mA	35 mA	30 mA	30 mA	60 mA
Spot Dimension:	approx. 200 mm at 4m	approx. 250mm at 1m	approx. 0.2mm @ 15cm approx. 2mm @ 50cm	approx. 90mm at 3m	approx. 10mm	approx. 16mm at 200mm	approx. 3.5mm at 19mm	approx. 16 mm at 150mm
Setting:	sensitivity trimmer					push-button teaching
Indicators:	yellow: OUTPUT LED green: STABILITY LED green (emitter): POWER ON LED	yellow: OUTPUT LED green: STABILITY LED	yellow: OUTPUT LED green: POWER ON LED	yellow: OUTPUT LED green: STABILITY LED	yellow: OUTPUT LED green: POWER ON LED	yellow: OUTPUT LED green / red READY / ERROR LED		yellow: OUTPUT LED red: FIELD LED
Output Type:	PNP, N.O. and N.C. / NPN, N.O. and N.C					PNP, N.O. / NPN, N.O.		PNP, NO NPN, NO analog with 0...10 V (8 bit)
Output Current:	100 mA
Saturation Voltage:	2 V
Response Time:	1 ms	500 µs	250 µs	500 µs	250 µs	500 µs	100 µs	1 ms
