Image for Rugged Water Conductivity Sensor

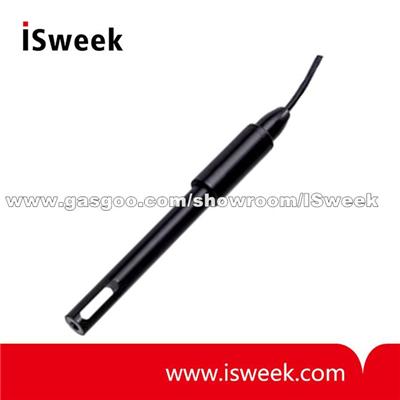

Rugged Water Conductivity Sensor

Application: \
Market Type:After Market
Price: Inquiry For It?

Contact Supplier no sign-up required

Add to Favorites

Product Details

Company Profile

Quick Details

OE Experience:
No

Product Name:Rugged Water Conductivity Sensor

Rugged Water Conductivity Sensor

Application

\

Product Description:

WQ-COND Rugged Water Conductivity Sensors Description
WQ-COND Conductivity Sensors are suitable for measuring conductivity in a wide variety of applications including laboratories, streams, rivers, and groundwater. The conductivity sensor's small size and rugged housing make it useful for hand held measurements or permanent installation.

WQ-COND Rugged Water Conductivity Sensors Features

Fully encapsulated electronics
Dual 4-20 mA outputs
Sensor armor available for harsh environments
Marine grade cable with strain relief
Measure conductivity up to 82 feet deep

WQ-COND Conductivity Sensors Applications
Ideal for stream and lake monitoring, aquaculture studies, baseline analyses, mitigation monitoring, and other environmental applications.

WQ-COND Rugged Water Conductivity Sensors Specifications

Conductivity Ranges	0 to 200 µS/cm 200 to 2000 µS/cm 2 to 20 mS/cm 20 to 200 mS/cm 200 to 2000 mS/cm
Temperature Range	23 to 158°F (-5 to 70°C)
Conductivity Accuracy	+0.5% of reading
Temperature Accuracy	+0.4ºF (+0.2ºC)
Conductivity Resolution	0.1 uS/cm 1 µS/cm 0.01 mS/cm 0.1 mS/cm 1 mS/cm
Temperature Resolution	0.02°F (0.01°C)
Output	Dual 4-20 mA
Temperature Response	99% in <20 seconds
Maximum Pressure	35 psi (82 ft (25m))
Immersion Depth	1.4 inches (36 mm)
Operating Voltage	10-36 VDC
Current Draw	20 mA plus sum of both sensor outputs
Warm-up Time	3 seconds minimum
Operating Temperature	23 to +158°F (-5 to +70°C)
Storage Temperature	-4 to +212°F (-20 to +100°C)
Dimensions	8 inch L x 0.86 inch Diameter (202mm L x 22 cm Dia.)
Weight	8 oz (227 g) plus cable

WQ-COND Rugged Water Conductivity Sensors Ordering & Options

Conductivity Sensors 1
Order No.	Conductivity Range
WQ-Cond-1	0 to 200 uS/cm
WQ-Cond-2	200 to 2000 uS/cm
WQ-Cond-3	2 to 20 mS/cm
WQ-Cond-4	20 to 200 mS/cm
WQ-Cond-5	200 to 2000 mS/cm
1) Sensors include 25 ft of cable.

Cable
Order No.	Description
WQEXC	Extra Sensor Cable, per foot (up to 500 ft)

Accessories
Order No.	Description
903836	Plastic Armor
903837	Stainless Steel Armor
