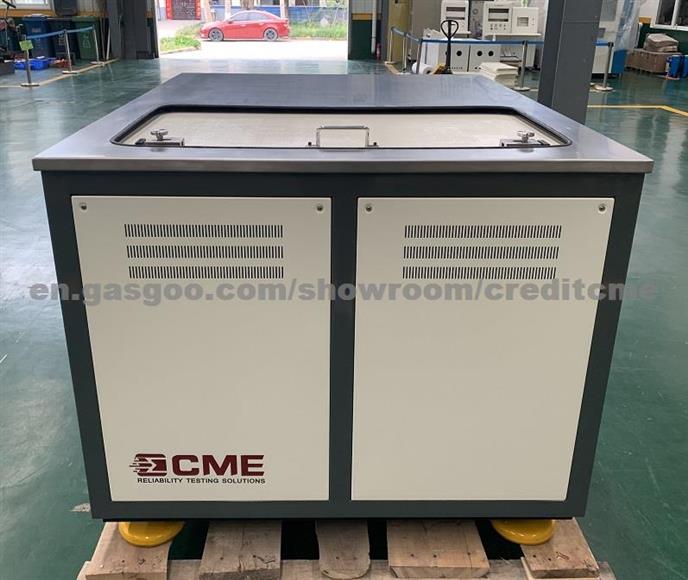

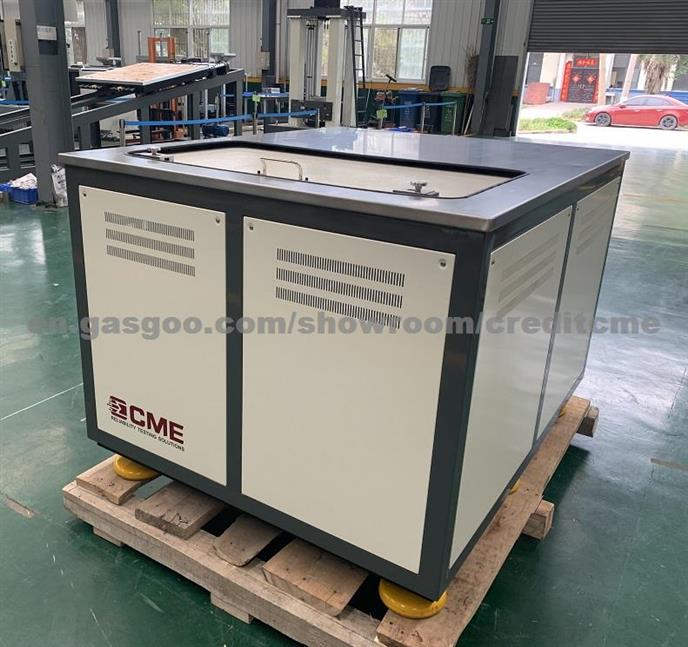

OEM No/Model: KRD30-10
KRD30 series centrifugal constant acceleration test machine is used to evaluate when components, equipment and other electrical and electronic products are subjected to constant acceleration environment (except gravity), whether the structure adaptability and performance are good, and obtain the units electrical parameters.
Model Parameters |
KRD30-03 | KRD30-05 | KRD30-10 | KRD30-20 | KRD30-2M | KRD30-3M | KRD30-4M | KRD30-8M |
Max. Load (kg)/Position | 3×6 | 5×4 | 10×2 | 20×2 | 0.05×N | 0.04×N | 0.03×N | 0.02×N |
Acceleration (g) | 3-500 | 5-100 | 200-20k | 300-30k | 500-40k | 500-80k | ||
Max. Height for Specimen (mm) |
200 | 300 | ||||||
Installation Radius (mm) | 230 | 500 | 80-100 | |||||
Max. Rotating Speed (R/Min) |
1400 | 450 | 15000 | 18500 | 21500 | 30000 | ||
Launch/Stop Time (Min) | 3 | 5 | ||||||
Continues Worktime (Min) |
60 | 30 | 5 | |||||
Acceleration Accuracy (%) | 3 | |||||||
Consumption Power (kVA) |
3 | 5 | 7.5 | 11 | 15 | |||
Overall Dimension (mm) | 1100×1100×1200 | 1650×1350×1100 | 1000×1000×1100 | |||||
Collector Ring |
15 rings 500V 5A |
12rings 500V 5A |
||||||
Weight (kg) | 1200 | 1600 | 2300 | 2500 | 1200 | 1500 | ||
Power Supply |
AC380V±10% , 50/60Hz |
|||||||
Measurement & Control System |
Automatic computer control or manual control | |||||||
Remarks | The current collector and the control precision can be in accordance the related standards or customer requirements | |||||||
Working Environment |
Temperature Range 0-40, Humidity80% (no condense) | |||||||
Standards | MIL-STD-810F IEC68-2-7 |
