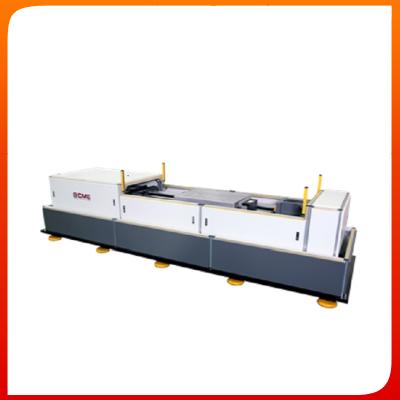

KRD12 Pneumatic Horizontal Shock Test System

Application: CME
OEM No/Model: KRD12
Market Type:After Market
EXW Price: Inquiry For It?
Payment Terms: T/T
Minimum Order: 1Set/Sets

Contact Supplier no sign-up required

Add to Favorites

Product Details

Company Profile

Quick Details

Type:
other
Place of Origin:
China
OE Experience:
No

Product Name:KRD12 Pneumatic Horizontal Shock Test System

KRD12 Pneumatic Horizontal Shock Test System

Application

CME

Product Description:

OEM No/Model: KRD12
The KRD12 series shock test system is used to measure and determine the horizontal impact resistance of a product or package, and to evaluate the reliability and structural integrity of the test unit in a horizontal impact environment. The system can perform conventional half-sine wave, post-peak sawtooth wave, or square wave shock test to realize the shock energy that the product is subjected to in the actual environment, thereby improving the product or packaging structure.

1.         Windows-based stable control system, full-automatic remote-control interface
2.         Pneumatic cylinder drivingwith advantages of large driving force, short accelerating stroke, low cost and pollution free.
3.         Trapezoidal guide posts: large supporting force, good lubricity and full-automatic positioning table.
4.         Automatic control of shock speed: the shock overload value is achieved by adjusting the air pressure. After the cylinder pressure is set, system will automatically control the shock speed with high accuracy and good repeatability.
5.         Adopts the high strength and hardness cast aluminum table, which has high first-order resonance frequency, featured with low noise and no clutter
6.         The most reliable double-brake system: effectively avoids secondary rebound collisions, more securely positioning the table, and more reliably guarantees the safety of the operator.
7.         Multiple waveforms: can perform conventional half-sine waves, post-peak sawtooth waves, or square waves.
8.         Easy installation: the device comes with a base, due to short driving stroke of the pneumatic cylinder, the footprint is small.
9.         Integrated control & measurement system: the system comes with a variety of waveform tolerance bands that comply with the MIL-810 standard, automatically generates test reports after the test is completed.
10.      System scalability: the system can be designed as a bidirectional shock according to user needs, saving test time more effectively.

Technical Specifications

Model Parameters		KRD12-50	KRD12-100	KRD12-200	KRD12-500	KRD12-1000	KRD12-3000
Rated Load (kg)		50	100	200	500	1000	3000
Table Size (mm)		500×500	600×600	800×800	900×900	1000×1000	1500×1500
Peak Acc. (G)	Half-Sine	10-1k	10-1k	10-800	10-600	15-400	15-300
	Post-Peak Sawtooth	10-200	10-100		10-50
	Trapeziod	15-100	15-100	15-50
Pulse Duration (ms)	Half-Sine	1~40	1-40	2-40		3-40	6-60
	Post-Peak Sawtooth	3~18	6-16	6-18
	Trapeziod	6~18	616	612
Overall Dimension (mm)		3700×1200×850	4000×1200×850	4300×1440×850	4400×1540×850	4500×1640×850	5000×2150×1850
Weight (kg)		1500	1800	2500	3000	3500	5500
Power Supply		AC380V±10%, 50/60Hz
Standard		MIL-STD-810F IEC68-2-27
