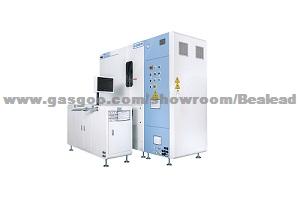

Automatic Ball Fiber Jacket Filling Machine

    • Application: Acura
    • Market Type:After Market
    • Price: Inquiry For It?
    • Payment Terms: L/C, T/T
    • Minimum Order: 1Set/Sets

Quick Details

  • Output Power:

    3.5kw

  • Length:

    2.4m

  • Width:

    4.2m

  • Height:

    2m

  • Output voltage:

    380V

  • Function:

    Filling Clothes

  • After-sales Service:

    Local Agent And Engineers

  • Model No:

    246B

  • Place of Origin:

    China

  • Delivery Time:

    20days

  • Packing:

    Plywood

  • OE Experience:

    No

Product Name:Automatic Ball Fiber Jacket Filling Machine

Automatic Ball Fiber Jacket Filling Machine

Application

Acura

Product Description:



1. All-in-one machine, Hign Valuable machine. One set could fill two different mateirals: down and Ball fiber. Shot your cost problem!

2. 2 pipes, allow 2 people operating machine at the same time to finish different Filing target.

3. Each pipe supported by 4 weighing scales. Work very fast, Machine always prepare well in advance.

4. Save Up 100*100 data, help you keep many styles data inside computer.

5. Single Fiber Holding Volume: 8kg~12kg approximately.

6. Machines can be widely used for garments(jackets, vests), sleeping bags, comforters/duvets, and accessories.



Details:

Brand: Bealead

Model: 246B

Composed by: 1 feeding unit and 2 Weighing Units/ Filling Station

Filling Pipes: 2

Scales by filling pipe: 4

Fillings by hour: 1800 ( Polyester Balls)/ 1400 ( Down)

Application: Apparel, Commodity, Textiles

Material Application: 50%- 90% down

Weight: 1000kg

Filling Storage: 10kg

Weighing Range: 0.2g- 20g

Accuracy: 0.01g

Feeding Unit Size: 2.4* 0.9* 2m

Weighing Unit Size: 1.6* 0.5* 0.9m

Overall Size: 2.4* 4.2* 2m

Min. Site Area: 4m* 5m



Main Specification
Voltage 380V Air Tank 1m³
Air Pressure 0.6- 0.8MPa Air Compressor Power 11KW
Min. Air Pressure 0.5MPa Air Compressor Exhaust 1.6m³/min
Max. Power 3.5KW Air Monitoring System
PPR Pipe 1.5 inch Down Returning System
Pipe Distance 20m Humidity Control System      -



Company Information

ChangShu Bealead Automatic Machine Co.,LTD, located in changshu, jiangsu ,china. Close to ShangHai Port, driving for 1.5hours, transportation convenient.

Our company is R&D manufacturer of intelligent device for clothing production. We are in leading

position in Down feather filling area, covered most of Chinese market, Bosideng, Luo Lai, UNI QLO, are our customers.

We also have agents overseas, and more than 20 technecians for after sales service. They could answer you and service you at the first time you need.
