Automatic Boxed Goose Down Quilt Filling Machine

    • Application: Acura
    • Market Type:After Market
    • Price: Inquiry For It?
    • Payment Terms: L/C, T/T
    • Minimum Order: 1Set/Sets

Quick Details

  • Output Power:


  • Length:


  • Width:


  • Height:


  • Output voltage:


  • Function:

    Filling Duvet

  • After-sales Service:

    Local Agent And Engineers

  • Model No.:


  • Place of Origin:


  • Delivery Time:


  • Packing:


  • OE Experience:


Product Name:Automatic Boxed Goose Down Quilt Filling Machine

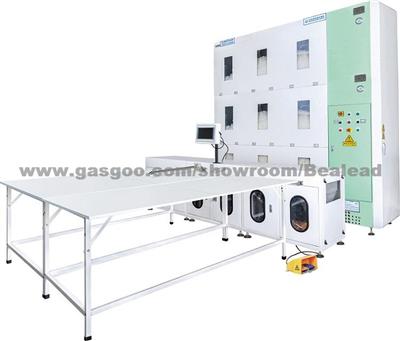

Automatic Boxed Goose Down Quilt Filling Machine



Product Description:

Specialized for Box/Chamber Duvets/Quilts.
Wide measure, the range of weighing can set 1--80 grams.
Wide application for different types of down and feather, also could fill Ball Fiber material.
Showing accuracy can reach0.1g per filling time.

Details: Brand: Bealead
Model: 1202B
Composed by: 1 feeding unit and 3 weighing units 1 filling station
Filling Pipes: 2
Scales by filling pipe: 3
Fillings by hour: 800 lattices
Application: Apparel, Commodity, Textiles
Material Application: 50%- 90% down
Weight: 1300kg
Filling Storage: 25kg
Weighing Range: 1g- 80g
Accuracy: 0.1g
Feeding Unit Size: 2.55* 0.9* 3.5m
Weighing Unit Size: 2.7* 0.66* 0.87m
Overall Size: 2.9* 4.7* 3.7m
Min. Site Area: 6m* 7m

Main Specification

380V Air Tank 2m³
Air Pressure 0.6- 0.8MPa Air Compressor Power 11KW
Min. Air Pressure 0.5MPa Air Compressor Exhaust 1.6m³/min
Max. Power 4.5KW Air Monitoring System
PPR Pipe 1.5 inch Down Returning System      -
Pipe Distance 20m Humidity Control System      -

Accessories Automatic Down Jacket Filling Machine
  Duvet Filling1202


Company Information

ChangShu Bealead Automatic Machine Co.,LTD, located in changshu, jiangsu ,china. Close to ShangHai Port, driving for 1.5hours, transportation convenient.

Our company is R&D manufacturer of intelligent device for clothing production. We are in leading

position in Down feather filling area, covered most of Chinese market, Bosideng, Luo Lai, UNI QLO, are our customers.

We also have agents overseas, and more than 20 technecians for after sales service. They could answer you and service you at the first time you need.
