OEM No/Model: DXJ1400 Series
Functions and Features

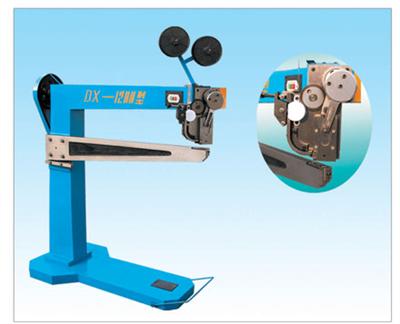

DX series carton-stapling machines are the specified machine used in the last process of corrugated cardboard production line, which is the necessary specified equipment for the manufactures of paper boxes. Through the update technology, the DX series carton-stapling machines have been designed into the high speed league pole, never worn bottom-formwork. In addition, the DX series carton-stapling machines which are produced by our company are painstakingly designed .It is combined with all the advantages of the similar products at home and abroad, thus having the advantages such as novel outlook, easy and stable operation, firm stapling and long service life and so on.
Technical Parameters
|
Model |
Stapling Speed | Stapling Thickness(layer) | Stretching length of the Holding Arm | Exterior Dimensionmm | Total Weight of the Machine |
| DX-600 |
250/min 250stitchings/min |
3,5 layer | 600mm | 1100x600 x1760 | 300kg |
| DX-900 |
250/min 250stitchings/min |
3,5,7 layer | 900mm | 1400x600 x1760 | 400kg |
| DX-1200 |
250/min 250stitchings/min |
3,5,7 layer | 1200mm | 1700x700 x1820 | 600kg |
| DX-1400 |
250/min 250stitchings/min |
3,5,7 layer | 1400mm | 1900x700 x1820 | 800kg |
| DX-1800 |
250/min 250stitchings/min |
3,5,7 layer | 1800mm | 2300x700 x1820 | 1000kg |
