52mm black faceplate Oil pressure gauge with reasonable 0-5 bar for universal truck marine yacht

Contact Supplier no sign-up required

Product Details

Company Profile

	Product Description Be suitable for all kinds of pressure sensors, and display the value of air or liquid pressure Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration. Operating temperature: -40°C~+85°C Protection rank : IP67. Product Picture Product Information Operating voltage: 12V/24V Fixing dimension: 52mm. Scale Part: 0-4/4 Description: Magnet Movement gauge Weight: 100g/each one pcs Resistance output: 0-5Bar Bezels with black, white plastic and stainless steel can be customized, and faceplate with white, black can be choosed. Accessories:Installation Instructions; Wires and resistance. Product Features Protection grade is IP67, the whole body is completely waterproof; Excellent antifogging function; 316 Stainless steel bezel with curved glass; Convenient Installation by multi-pliug socket connecting way; Red and yellow dual-color background light can be choosed; The moving magnet gauge need to connect to extraresistors for 8V-16V working voltage.

Product Description

Be suitable for all kinds of pressure sensors, and display the value of air or liquid pressure
Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.
Operating temperature: -40°C~+85°C
Protection rank : IP67.

Product Picture

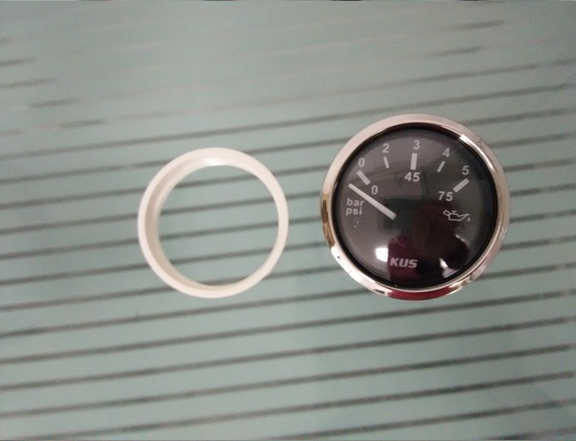

oil pressure 0-5bar.jpg

Product Information

Operating voltage: 12V/24V
Fixing dimension: 52mm.
Scale Part: 0-4/4
Description: Magnet Movement gauge
Weight: 100g/each one pcs
Resistance output: 0-5Bar
Bezels with black, white plastic and stainless steel can be customized, and faceplate with white, black can be choosed.

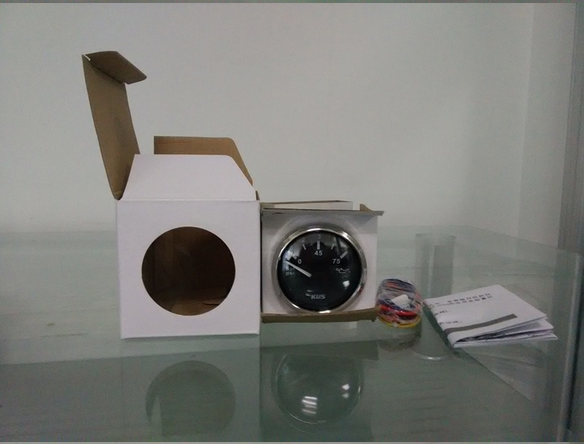

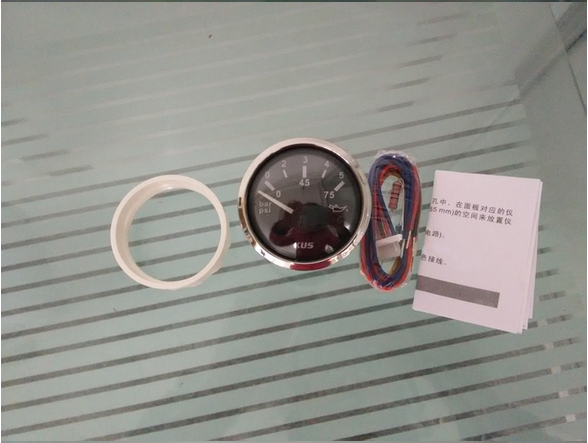

Accessories:Installation Instructions; Wires and resistance.

Product Features

Protection grade is IP67, the whole body is completely waterproof;
Excellent antifogging function;
316 Stainless steel bezel with curved glass;
Convenient Installation by multi-pliug socket connecting way;
Red and yellow dual-color background light can be choosed;
The moving magnet gauge need to connect to extraresistors for 8V-16V working voltage.
