Quick Details

• Type:

  pressure gauge

• Place of Origin:

  Shanghai China (Mainland)

• Brand Name:

  SPR

• Model Number:

  SY15015

• Color:

  White

• Bezel:

  SUS 316

• Place of Origin:

  Shanghai China (Mainland)

• Packing:

  Color Box

• Delivery Port:

  SHA

• OE Experience:

  No

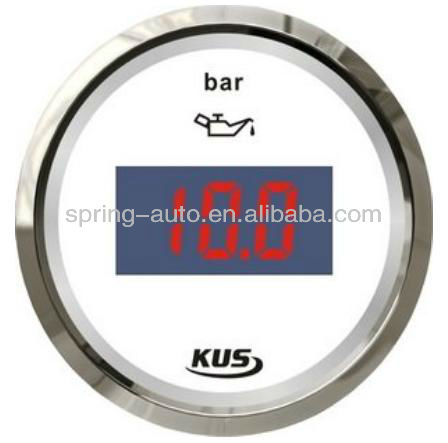

Product Name:52mm Digital Oil pressure gauge SY15015 (WS-0-10)

52mm Digital Oil pressure gauge SY15015 (WS-0-10)

Application

all

Product Description:

Specifications

Oil pressure gauge:
1.Indicating Range:0-10Bar
2.Working Voltage:12V/24V
3.Installation Dimension:52mm
4.Signal: 10-184ohm

5.Color: White

6.Bezel: SUS 316

Packaging&Delivery

Packaging Detail: Colour box

Delivery detail : 10-15 days for 100pcs

Specifications

• Be suitable for all kinds of pressure sensors, and display the value of air or liquid pressure
• Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.
• Operating temperature: -40°C  ~+85°C
• Protection rank : IP67.

Products Picture

Product Detail

 Product Information

• Product Name: Oil pressure gauge

• Art No.  SY15015

• Operating voltage: 12V/24V
• Fixing dimension: 52mm.
• Scale Part: 0-4/4
• Description: Magnet Movement gauge
• Weight: 100g/each one pcs
• Resistance output: 0-10 Bar

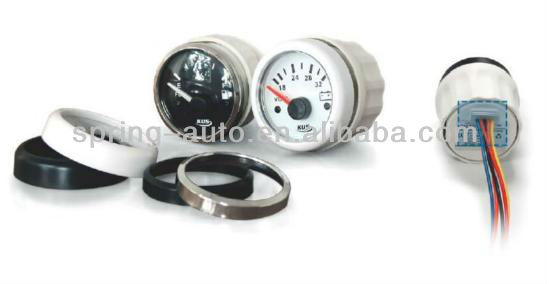

• Bezels with black, white plastic and stainless steel can be customized, and faceplate with white, black can be choosed.
• MOQ : 50~100pcs. In the beginning, we can suppose you order small quantity for your test."OEM" can be customized.
• Accessories: Installation Instructions;  Wires and resistance.

 Warranty Time:  Within one year after shipment, except for improper installation and operations by user.

 Product Features

1. Protection grade is IP67, the whole body is completely waterproof;
2. Excellent antifogging function;
3. 316 Stainless steel bezel with curved glass;
4. Convenient Installation by multi-pliug socket connecting way;
5. Red and yellow dual-color background light can be choosed;

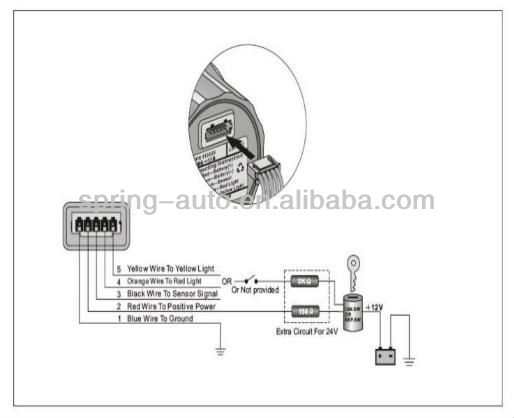

6. The moving magnet gauge need to connect to extra resistors for 8V-16V working voltage.
