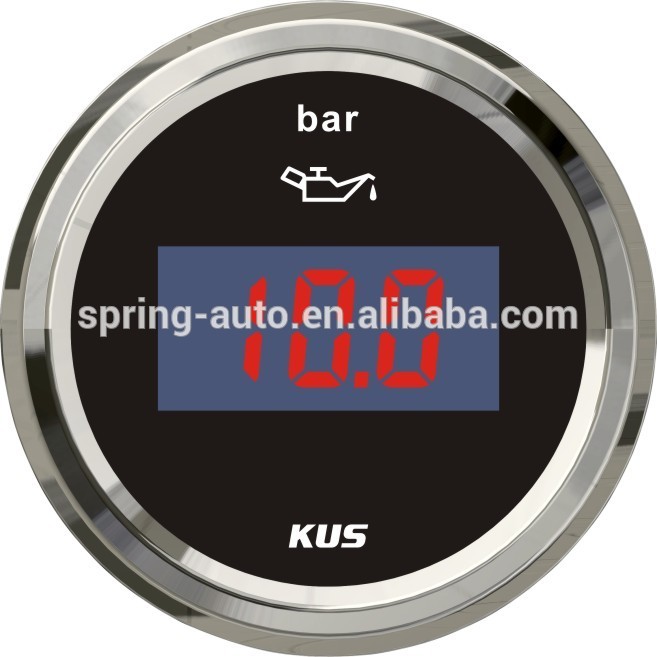

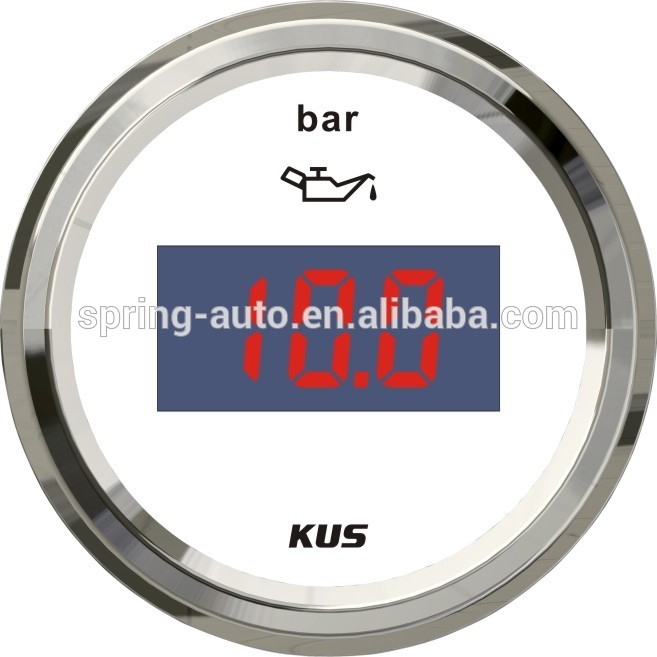

Product Name:SQ 2" 52mm digital oil pressure gauge meter 0-10bar with backlight

SQ 2" 52mm digital oil pressure gauge meter 0-10bar with backlight

Application

all

Product Description:

• Be suitable for all kinds of pressure sensors, and display the value of air or liquid pressure
• Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.
• Operating temperature: -40°C ~+85°C

Product Information

• Operating voltage: 12V/24V
• Fixing dimension: 52mm.
• Description: Magnet Movement gauge
• Weight: 100g/each one pcs
• Resistance output: 0-10 Bar
• Bezels with black, white plastic and stainless steel can be customized, and faceplate with white, black can be choosed.
• Accessories: Installation Instructions;  Wires and resistance.

Product Features

1. Front side has IP67 protection rating; back side has IP65 protection rating;
2. Double layer reinforced anti-fogging class;
3. 316 Stainless steel bezel with curved glass;
4. Quick and easy to install by terminal
5. Choice between red and yellow backlight
6. Direct connect without extra resistors for 12/24V working voltage.
